Point Transformer V3

Point Transformer V3 classification and segmentation models.

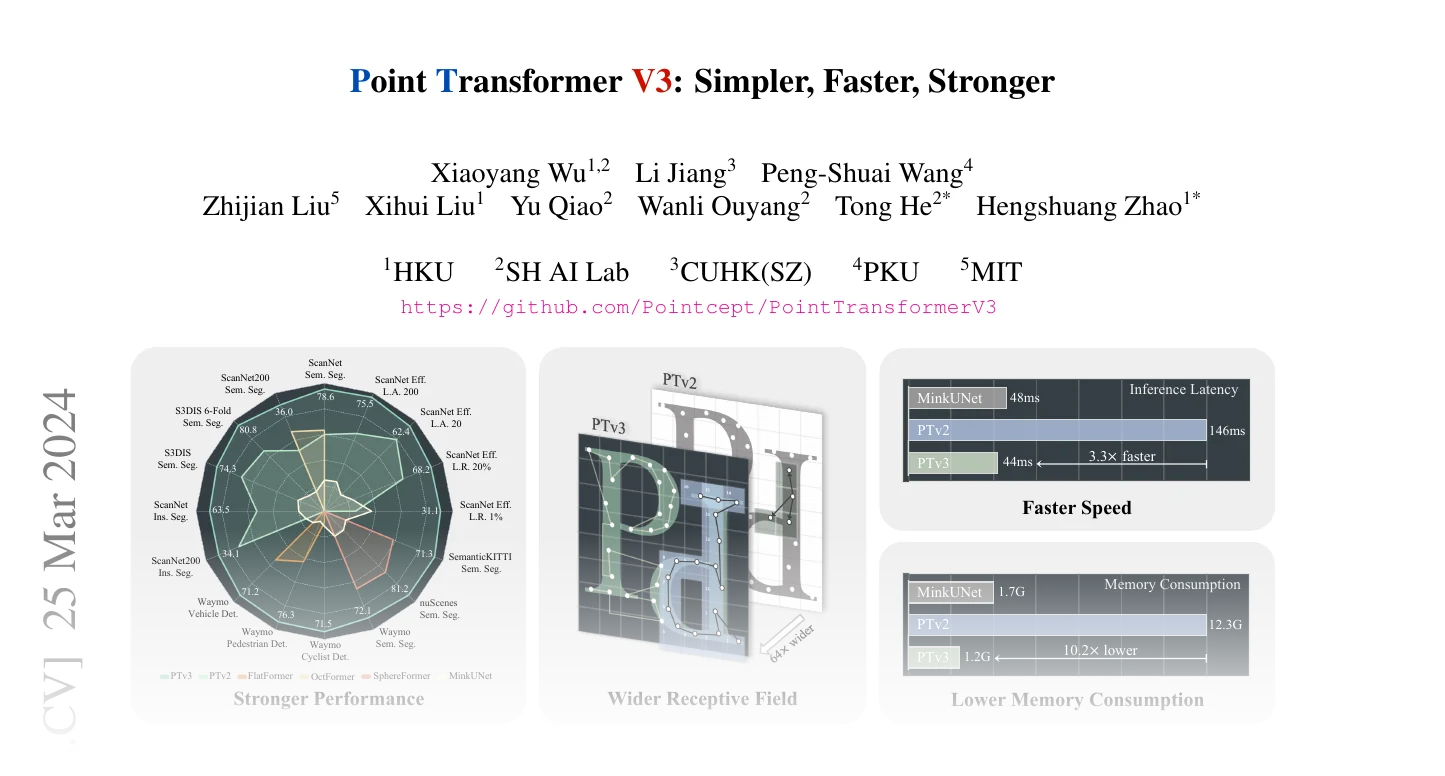

First page of Point Transformer V3: Simpler, Faster, Stronger

2312.10035 · December 2023

Classes:

PointTransformerV3Block –

Transformer block over serialized patches: an xCPE sparse-convolution residual, then pre-normed
PointTransformerV3EncoderBlock –

One encoder stage: an optional pooling downsampling, then depth PointTransformerV3Block units.
PointTransformerV3DecoderBlock –

One decoder stage: an optional upsampling onto the skip resolution, then depth PointTransformerV3Block units
PointTransformerV3Encoder –

Point Transformer V3 encoder backbone.
PointTransformerV3Decoder –

Point Transformer V3 decoder with skip connections.
PointTransformerV3Classification –

PyTorch implementation of the Point Transformer V3 model, as described in the paper
PointTransformerV3Segmentation –

PyTorch implementation of the Point Transformer V3 model for segmentation tasks.

Functions:

serialize –

Encode voxel-grid coordinates along one or more space-filling curves and sort the points by each code.

PointTransformerV3Block ¶

PointTransformerV3Block(
    channels: int,
    num_heads: int,
    patch_size: int = 48,
    mlp_ratio: float = 4.0,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.0,
    act: Union[str, Callable] = "gelu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    cpe_indice_key: Optional[str] = None,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = True,
    upcast_softmax: bool = True,
    rope_base: float = 10.0,
    legacy: bool = False,
)

Bases: Module

Transformer block over serialized patches: an xCPE sparse-convolution residual, then pre-normed patch attention and an MLP.

PointTransformerV3EncoderBlock ¶

PointTransformerV3EncoderBlock(
    channels: int,
    depth: int,
    num_heads: int,
    patch_size: int,
    mlp_ratio: float = 4.0,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: ValueCollection[float] = 0.0,
    act: Union[str, Callable] = "gelu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    cpe_indice_key: Optional[str] = None,
    downsample: Optional[Module] = None,
    serialization_orders: Optional[
        Sequence[SerializationOrder]
    ] = None,
    shuffle_serialization_orders: bool = False,
    rope_base: float = 10.0,
    legacy: bool = False,
)

Bases: Module

One encoder stage: an optional pooling downsampling, then depth PointTransformerV3Block units.

Consecutive blocks cycle through the available serialization orders, so each attends over a differently ordered patch partition. Grid pooling re-serializes the pooled cloud, while serialized pooling derives the coarser codes by bit-shifting the finer ones.

PointTransformerV3DecoderBlock ¶

PointTransformerV3DecoderBlock(
    channels: int,
    depth: int,
    num_heads: int,
    patch_size: int,
    mlp_ratio: float = 4.0,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: ValueCollection[float] = 0.0,
    act: Union[str, Callable] = "gelu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    cpe_indice_key: Optional[str] = None,
    upsample: Optional[SerializedUpsample] = None,
    rope_base: float = 10.0,
    legacy: bool = False,
)

Bases: Module

One decoder stage: an optional upsampling onto the skip resolution, then depth PointTransformerV3Block units cycling through the skip's serialization orders.

PointTransformerV3Encoder ¶

PointTransformerV3Encoder(
    in_channels: int = 6,
    serialization_orders: Sequence[SerializationOrder] = (
        "hilbert",
        "hilbert-trans",
    ),
    shuffle_serialization_orders: bool = True,
    strides: Sequence[int] = (2, 2, 2, 2),
    encoder_depths: Sequence[int] = (2, 2, 2, 6, 2),
    encoder_channels: Sequence[int] = (
        32,
        64,
        128,
        256,
        512,
    ),
    encoder_num_heads: Sequence[int] = (2, 4, 8, 16, 32),
    encoder_patch_size: Sequence[int] = (
        48,
        48,
        48,
        48,
        48,
    ),
    act: Union[str, Callable] = "gelu",
    norm: Union[str, Callable] = "batch_norm",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    bias: bool = True,
    mlp_ratio: float = 4,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.3,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    pooling: str = "serialized",
    stem_type: str = "sparse_conv",
    rope_base: float = 10.0,
    legacy: bool = False,
)

Bases: Module

Point Transformer V3 encoder backbone.

Encoder-only backbone for feature extraction from 3D point clouds. Supports both sparse convolution (PTV3 Mode 1) and linear (Sonata / Mode 2) embedding stems, and both serialized (code-space) and grid-based pooling.

Parameters:

in_channels (int, default: 6 ) –

Number of input channels.
serialization_orders (Sequence[SerializationOrder], default: ('hilbert', 'hilbert-trans') ) –

Serialization orders for attention.
shuffle_serialization_orders (bool, default: True ) –

Shuffle orders each forward pass.
strides (Sequence[int], default: (2, 2, 2, 2) ) –

Downsampling strides between encoder stages.
encoder_depths (Sequence[int], default: (2, 2, 2, 6, 2) ) –

Number of blocks per encoder stage.
encoder_channels (Sequence[int], default: (32, 64, 128, 256, 512) ) –

Feature channels per encoder stage.
encoder_num_heads (Sequence[int], default: (2, 4, 8, 16, 32) ) –

Attention heads per encoder stage.
encoder_patch_size (Sequence[int], default: (48, 48, 48, 48, 48) ) –

Patch size per encoder stage.
norm (Union[str, Callable], default: 'batch_norm' ) –

Normalization layer type.
act (Union[str, Callable], default: 'gelu' ) –

Activation function type.
mlp_ratio (float, default: 4 ) –

MLP expansion ratio.
qkv_bias (bool, default: True ) –

Use bias in QKV projection.
qk_scale (Optional[float], default: None ) –

Custom QK scaling factor.
attn_drop (float, default: 0.0 ) –

Attention dropout rate.
proj_drop (float, default: 0.0 ) –

Projection dropout rate.
drop_path (float, default: 0.3 ) –

Drop path rate.
attn_kind (AttentionKind, default: 'default' ) –

Attention variant: "default" (vanilla, PT-V3 / Sonata / Concerto), "rpe" (PT-V3 with learned relative position bias), or "rope" (Utonia, 3D rotary position embedding on Q, K). The "rope" variant requires the real-valued pos argument at forward time.
use_flash_attn (bool, default: True ) –

Use Flash Attention. The registered configurations construct with use_flash_attn=True, which requires flash-attn and a CUDA device; pass use_flash_attn=False to run without it (the xCPE sparse convolution still needs a spconv build matching the device; the standard CUDA wheel cannot run on CPU).
upcast_attn (bool, default: False ) –

Upcast attention to fp32.
upcast_softmax (bool, default: False ) –

Upcast softmax to fp32.
pooling (str, default: 'serialized' ) –

Pooling strategy: "serialized" (code-space bit-shift) or "grid" (grid-coordinate clustering).
stem_type (str, default: 'sparse_conv' ) –

How to embed raw features: "sparse_conv" (SubMConv3d stem) or "linear" (linear projection).
rope_base (float, default: 10.0 ) –

RoPE frequency base. Only used when attn_kind="rope".
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the activation factory.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the normalization factory.
bias (bool, default: True ) –

Whether the stem and blocks use learnable bias where applicable.
legacy (bool, default: False ) –

Reproduce the reference implementation's v1.5.1 block xCPE bug (the block output was not written back to the sparse tensor the next block convolves; fixed in v1.5.2). The released weights need legacy=True; leave False (default) for new training.

Inputs

x: Float tensor of shape \((N, \text{in\_channels})\). pos_grid: Int tensor of shape \((N, 3)\) with voxel-grid coordinates. batch: Long tensor of shape \((N,)\).

Outputs

Encoded features at the deepest encoder level.

Methods:

configure_stem –

Build the embedding stem, either a LinearBlock or a SubMConv3dBlock.
configure_blocks –

Build the PointTransformerV3EncoderBlock stages, giving every stage but the first a pooling downsampling.

Attributes:

embedding_dim (int) –

Feature dimension \(C\) of the encoder output.

embedding_dim `property` ¶

embedding_dim: int

Feature dimension \(C\) of the encoder output.

configure_stem ¶

configure_stem(
    in_channels: int,
    out_channels: int,
    norm: Union[str, Callable],
    act: Union[str, Callable],
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    bias: bool = True,
    stem_type: str = "sparse_conv",
) -> Module

Build the embedding stem, either a LinearBlock or a SubMConv3dBlock.

configure_blocks ¶

configure_blocks(
    depths: Sequence[int],
    channels: Sequence[int],
    num_heads: Sequence[int],
    patch_sizes: Sequence[int],
    strides: Sequence[int],
    mlp_ratio: float = 4.0,
    bias: bool = True,
    norm: Union[str, Callable] = "batch_norm",
    act: Union[str, Callable] = "gelu",
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.0,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    pooling: str = "serialized",
    serialization_orders: Optional[
        Sequence[SerializationOrder]
    ] = None,
    shuffle_serialization_orders: bool = False,
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    rope_base: float = 10.0,
    legacy: bool = False,
) -> ModuleList

Build the PointTransformerV3EncoderBlock stages, giving every stage but the first a pooling downsampling.

PointTransformerV3Decoder ¶

PointTransformerV3Decoder(
    encoder_channels: Sequence[int] = (
        32,
        64,
        128,
        256,
        512,
    ),
    decoder_depths: Sequence[int] = (2, 2, 2, 2),
    decoder_channels: Sequence[int] = (256, 128, 64, 64),
    decoder_num_heads: Sequence[int] = (16, 8, 4, 4),
    decoder_patch_size: Sequence[int] = (48, 48, 48, 48),
    norm: Union[str, Callable] = "batch_norm",
    act: Union[str, Callable] = "gelu",
    mlp_ratio: float = 4,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.3,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    rope_base: float = 10.0,
    legacy: bool = False,
)

Bases: Module

Point Transformer V3 decoder with skip connections.

Decoder backbone that upsamples encoder features using skip connections from intermediate encoder stages. Used for dense prediction tasks like semantic segmentation.

Parameters:

encoder_channels (Sequence[int], default: (32, 64, 128, 256, 512) ) –

Channel sequence from the encoder (needed to derive skip-connection channels).
decoder_depths (Sequence[int], default: (2, 2, 2, 2) ) –

Number of blocks per decoder stage.
decoder_channels (Sequence[int], default: (256, 128, 64, 64) ) –

Feature channels per decoder stage.
decoder_num_heads (Sequence[int], default: (16, 8, 4, 4) ) –

Attention heads per decoder stage.
decoder_patch_size (Sequence[int], default: (48, 48, 48, 48) ) –

Patch size per decoder stage.
norm (Union[str, Callable], default: 'batch_norm' ) –

Normalization layer type.
act (Union[str, Callable], default: 'gelu' ) –

Activation function type.
mlp_ratio (float, default: 4 ) –

MLP expansion ratio.
qkv_bias (bool, default: True ) –

Use bias in QKV projection.
qk_scale (Optional[float], default: None ) –

Custom QK scaling factor.
attn_drop (float, default: 0.0 ) –

Attention dropout rate.
proj_drop (float, default: 0.0 ) –

Projection dropout rate.
drop_path (float, default: 0.3 ) –

Drop path rate.
attn_kind (AttentionKind, default: 'default' ) –

Attention variant ("default", "rpe", or "rope").
use_flash_attn (bool, default: True ) –

Use Flash Attention.
upcast_attn (bool, default: False ) –

Upcast attention to fp32.
upcast_softmax (bool, default: False ) –

Upcast softmax to fp32.
rope_base (float, default: 10.0 ) –

RoPE frequency base. Only used when attn_kind="rope".

Inputs

x: Encoded features at the deepest encoder level. intermediates: List of dicts from the encoder, each containing skip features, positions, batch indices, serialization tensors, and pooling inverse indices.

Outputs

Decoded features at the shallowest decoder level.

Methods:

configure_blocks –

Build the PointTransformerV3DecoderBlock stages, giving every stage an upsampling onto its skip resolution.

Attributes:

out_channels (int) –

Feature dimension \(C\) of the decoder output.

out_channels `property` ¶

out_channels: int

Feature dimension \(C\) of the decoder output.

configure_blocks ¶

configure_blocks(
    depths: Sequence[int],
    channels: Sequence[int],
    skip_channels: Sequence[int],
    num_heads: Sequence[int],
    patch_sizes: Sequence[int],
    mlp_ratio: float = 4.0,
    norm: Union[str, Callable] = "batch_norm",
    act: Union[str, Callable] = "gelu",
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.0,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    rope_base: float = 10.0,
    legacy: bool = False,
) -> ModuleList

Build the PointTransformerV3DecoderBlock stages, giving every stage an upsampling onto its skip resolution.

PointTransformerV3Classification ¶

PointTransformerV3Classification(
    in_channels: int,
    num_classes: int,
    serialization_orders: Sequence[SerializationOrder] = (
        "hilbert",
        "hilbert-trans",
    ),
    shuffle_serialization_orders: bool = True,
    strides: Sequence[int] = (2, 2, 2, 2),
    encoder_depths: Sequence[int] = (2, 2, 2, 6, 2),
    encoder_channels: Sequence[int] = (
        32,
        64,
        128,
        256,
        512,
    ),
    encoder_num_heads: Sequence[int] = (2, 4, 8, 16, 32),
    encoder_patch_size: Sequence[int] = (
        48,
        48,
        48,
        48,
        48,
    ),
    norm: Union[str, Callable] = "batch_norm",
    act: Union[str, Callable] = "gelu",
    mlp_ratio: float = 4,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.3,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    rope_base: float = 10.0,
    dropout: float = 0.0,
    global_pool: PoolLike = "max",
    pooling: str = "serialized",
    stem_type: str = "sparse_conv",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    legacy: bool = False,
    pdnorm_conditions: Optional[Sequence[str]] = None,
    condition: Optional[str] = None,
)

Bases: ClassificationModel

PyTorch implementation of the Point Transformer V3 model, as described in the paper Point Transformer V3: Simpler, Faster, Stronger by Xiaoyang Wu, Li Jiang, Peng-Shuai Wang, Zhijian Liu, Xihui Liu, Yu Qiao, Wanli Ouyang, Tong He, Hengshuang Zhao.

This implementation is based on the original implementation from Pointcept.

Important

This model requires spconv, torch-scatter to be installed. It is also recommended to install flash-attn for faster attention. The registered configurations construct with use_flash_attn=True, which requires flash-attn and a CUDA device; pass use_flash_attn=False to run without it. The xCPE sparse convolution still needs a spconv build matching the device; the standard CUDA wheel cannot run on CPU. In addition, it is recommended to install ocnn if you want to use more serialization orders.

Parameters:

in_channels (int) –

Number of input channels (corresponding to the number of features).
num_classes (int) –

Number of output classes.
serialization_orders (Sequence[SerializationOrder], default: ('hilbert', 'hilbert-trans') ) –

Serialization orders to use for the PointTransformerV3Encoder.
shuffle_serialization_orders (bool, default: True ) –

Whether to shuffle the serialization orders each step.
strides (Sequence[int], default: (2, 2, 2, 2) ) –

Downsampling strides between encoder stages.
encoder_depths (Sequence[int], default: (2, 2, 2, 6, 2) ) –

Number of encoder blocks per stage.
encoder_channels (Sequence[int], default: (32, 64, 128, 256, 512) ) –

Number of channels per stage.
encoder_num_heads (Sequence[int], default: (2, 4, 8, 16, 32) ) –

Number of attention heads per stage.
encoder_patch_size (Sequence[int], default: (48, 48, 48, 48, 48) ) –

Patch size per stage.
norm (Union[str, Callable], default: 'batch_norm' ) –

Normalization layer to use.
act (Union[str, Callable], default: 'gelu' ) –

Activation function to use.
mlp_ratio (float, default: 4 ) –

MLP hidden dimension ratio inside each block.
qkv_bias (bool, default: True ) –

Whether to use bias in the QKV projection.
qk_scale (Optional[float], default: None ) –

Scaling factor for the QK matrix.
attn_drop (float, default: 0.0 ) –

Dropout rate for the attention.
proj_drop (float, default: 0.0 ) –

Dropout rate for the output projection of each block.
drop_path (float, default: 0.3 ) –

Stochastic depth rate.
attn_kind (AttentionKind, default: 'default' ) –

Attention variant: "default", "rpe", or "rope". The "rope" variant requires the real-valued pos argument at forward time.
use_flash_attn (bool, default: True ) –

Whether to use flash attention.
upcast_attn (bool, default: False ) –

Whether to upcast the attention to fp32.
upcast_softmax (bool, default: False ) –

Whether to upcast the softmax in fp32.
rope_base (float, default: 10.0 ) –

RoPE frequency base. Only used when attn_kind="rope".
dropout (float, default: 0.0 ) –

Dropout rate before the classification head.
global_pool (PoolLike, default: 'max' ) –

How to pool point features to a batch-level vector ("max", "mean", etc.).
pooling (str, default: 'serialized' ) –

Pooling between encoder stages ("serialized" or "grid").
stem_type (str, default: 'sparse_conv' ) –

Encoder stem: "sparse_conv" or "linear".
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the activation factory.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the normalization factory.

Inputs

x: Float tensor of shape \((N, \text{in\_channels})\). pos_grid: Int tensor of shape \((N, 3)\) with voxel-grid coordinates. batch: Long tensor of shape \((N,)\). pos: Float tensor of shape \((N, 3)\) with metric coordinates. Required when attn_kind="rope".

Outputs

logits: Float tensor of shape \((N, \text{num\_classes})\).

Methods:

configure_encoder –

Build the PointTransformerV3Encoder backbone.
reset_classifier –

Resets the classification head with new parameters.
forward_head –

Forward pass of the classification head from pre-pooling features.
forward –

Forward pass of the Point Transformer V3 classification network.

Attributes:

num_features (int) –

Feature dimension \(C\) of the encoder output.

num_features `property` ¶

num_features: int

Feature dimension \(C\) of the encoder output.

configure_encoder ¶

configure_encoder() -> PointTransformerV3Encoder

Build the PointTransformerV3Encoder backbone.

reset_classifier ¶

reset_classifier(
    num_classes: int,
    global_pool: Optional[PoolLike] = None,
    **kwargs: Any,
) -> None

Resets the classification head with new parameters.

Note

To set an empty classification head, use num_classes=0.

Parameters:

num_classes (int) –

Number of output classes.
global_pool (Optional[PoolLike], default: None ) –

Pooling method to aggregate point features ("max" or "mean"). None keeps the current pooling.
**kwargs (Any, default: {} ) –

Additional keyword arguments to pass to the classification head.

forward_head ¶

forward_head(
    x: Tensor, batch: Tensor, pre_logits: bool = False
) -> Tensor

Forward pass of the classification head from pre-pooling features.

Parameters:

x (Tensor) –

Pre-pooling features of shape \((N, \text{embedding\_dim})\).
batch (Tensor) –

Batch indices for each point of shape \((N,)\).
pre_logits (bool, default: False ) –

Whether to return pre-logits. Defaults to False.

Returns:

Tensor –

Classification logits of shape \((B, \text{num\_classes})\).

forward ¶

forward(
    x: OptTensor,
    pos_grid: Tensor,
    batch: Tensor,
    condition: Union[str, Sequence[str], None] = None,
    pos: OptTensor = None,
) -> Tensor

Forward pass of the Point Transformer V3 classification network.

Parameters:

x (OptTensor) –

Additional point features of shape \((N, C)\).
pos_grid (Tensor) –

Integer grid coordinates of shape \((N, 3)\). The encoder uses these to derive the Z-order / Hilbert serialization index, so they must be voxel indices, not float positions.
batch (Tensor) –

Batch indices for each point of shape \((N,)\).
condition (Union[str, Sequence[str], None], default: None ) –

Optional per-batch condition selecting the PDNorm inner norms.
pos (OptTensor, default: None ) –

Real-valued metric positions of shape \((N, 3)\). Required when attn_kind="rope"; ignored otherwise.

Returns:

Tensor –

Classification logits of shape \((B, \text{num\_classes})\).

PointTransformerV3Segmentation ¶

PointTransformerV3Segmentation(
    in_channels: int,
    num_classes: int,
    serialization_orders: Sequence[SerializationOrder] = (
        "hilbert",
        "hilbert-trans",
    ),
    strides: Sequence[int] = (2, 2, 2, 2),
    encoder_depths: Sequence[int] = (2, 2, 2, 6, 2),
    encoder_channels: Sequence[int] = (
        32,
        64,
        128,
        256,
        512,
    ),
    encoder_num_heads: Sequence[int] = (2, 4, 8, 16, 32),
    encoder_patch_size: Sequence[int] = (
        48,
        48,
        48,
        48,
        48,
    ),
    decoder_depths: Sequence[int] = (2, 2, 2, 2),
    decoder_channels: Sequence[int] = (256, 128, 64, 64),
    decoder_num_heads: Sequence[int] = (16, 8, 4, 4),
    decoder_patch_size: Sequence[int] = (48, 48, 48, 48),
    norm: Union[str, Callable] = "batch_norm",
    act: Union[str, Callable] = "gelu",
    mlp_ratio: float = 4,
    qkv_bias: bool = True,
    qk_scale: Optional[float] = None,
    attn_drop: float = 0.0,
    proj_drop: float = 0.0,
    drop_path: float = 0.3,
    shuffle_serialization_orders: bool = True,
    attn_kind: AttentionKind = "default",
    use_flash_attn: bool = True,
    upcast_attn: bool = False,
    upcast_softmax: bool = False,
    rope_base: float = 10.0,
    dropout: float = 0.0,
    pooling: str = "serialized",
    stem_type: str = "sparse_conv",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm_kwargs: Optional[Dict[str, Any]] = None,
    legacy: bool = False,
    pdnorm_conditions: Optional[Sequence[str]] = None,
    condition: Optional[str] = None,
)

Bases: SegmentationModel

PyTorch implementation of the Point Transformer V3 model for segmentation tasks.

Based on the paper Point Transformer V3: Simpler, Faster, Stronger by Xiaoyang Wu, Li Jiang, Peng-Shuai Wang, Zhijian Liu, Xihui Liu, Yu Qiao, Wanli Ouyang, Tong He, Hengshuang Zhao.

This segmentation variant uses an encoder-decoder architecture with skip connections.

Parameters:

in_channels (int) –

Number of input channels.
num_classes (int) –

Number of output classes for segmentation.
serialization_orders (Sequence[SerializationOrder], default: ('hilbert', 'hilbert-trans') ) –

Serialization orders to use for the encoder.
strides (Sequence[int], default: (2, 2, 2, 2) ) –

Strides for the downsampling operations.
encoder_depths (Sequence[int], default: (2, 2, 2, 6, 2) ) –

Number of encoder blocks for each stage.
encoder_channels (Sequence[int], default: (32, 64, 128, 256, 512) ) –

Number of channels for each encoder block.
encoder_num_heads (Sequence[int], default: (2, 4, 8, 16, 32) ) –

Number of attention heads for each encoder block.
encoder_patch_size (Sequence[int], default: (48, 48, 48, 48, 48) ) –

Patch size for each encoder block.
decoder_depths (Sequence[int], default: (2, 2, 2, 2) ) –

Number of decoder blocks for each stage.
decoder_channels (Sequence[int], default: (256, 128, 64, 64) ) –

Number of channels for each decoder block.
decoder_num_heads (Sequence[int], default: (16, 8, 4, 4) ) –

Number of attention heads for each decoder block.
decoder_patch_size (Sequence[int], default: (48, 48, 48, 48) ) –

Patch size for each decoder block.
norm (Union[str, Callable], default: 'batch_norm' ) –

Normalization layer to use.
act (Union[str, Callable], default: 'gelu' ) –

Activation function to use.
mlp_ratio (float, default: 4 ) –

Ratio of the hidden dimension to the input dimension.
qkv_bias (bool, default: True ) –

Whether to use bias in the QKV projection.
qk_scale (Optional[float], default: None ) –

Scaling factor for the QK matrix.
attn_drop (float, default: 0.0 ) –

Dropout rate for the attention.
proj_drop (float, default: 0.0 ) –

Dropout rate for the projection.
drop_path (float, default: 0.3 ) –

Dropout rate for the drop path.
shuffle_serialization_orders (bool, default: True ) –

Whether to shuffle the serialization orders.
attn_kind (AttentionKind, default: 'default' ) –

Attention variant: "default", "rpe", or "rope". The "rope" variant requires the real-valued pos argument at forward time.
rope_base (float, default: 10.0 ) –

RoPE frequency base. Only used when attn_kind="rope".
use_flash_attn (bool, default: True ) –

Whether to use flash attention. The registered configurations construct with use_flash_attn=True, which requires flash-attn and a CUDA device; pass use_flash_attn=False to run without it (the xCPE sparse convolution still needs a spconv build matching the device; the standard CUDA wheel cannot run on CPU).
upcast_attn (bool, default: False ) –

Whether to upcast the attention.
upcast_softmax (bool, default: False ) –

Whether to upcast the softmax.
dropout (float, default: 0.0 ) –

Dropout on the per-point logits.
pooling (str, default: 'serialized' ) –

Inter-stage pooling ("serialized" or "grid").
stem_type (str, default: 'sparse_conv' ) –

Encoder stem ("sparse_conv" or "linear").
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the activation factory.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Optional keyword arguments for the normalization factory.

Methods:

configure_encoder –

Build the PointTransformerV3Encoder backbone.
configure_decoder –

Build the PointTransformerV3Decoder upsampling the coarsest features back through the encoder skips.
reset_classifier –

Resets the segmentation head with new parameters.
forward –

Forward pass of the Point Transformer V3 segmentation network.

Attributes:

num_features (int) –

Channel count \(C\) of the per-point decoder features entering the head.

num_features `property` ¶

num_features: int

Channel count \(C\) of the per-point decoder features entering the head.

configure_encoder ¶

configure_encoder() -> PointTransformerV3Encoder

Build the PointTransformerV3Encoder backbone.

configure_decoder ¶

configure_decoder() -> PointTransformerV3Decoder

Build the PointTransformerV3Decoder upsampling the coarsest features back through the encoder skips.

reset_classifier ¶

reset_classifier(num_classes: int, **kwargs: Any) -> None

Resets the segmentation head with new parameters.

Note

To set an empty segmentation head, use num_classes=0.

Parameters:

num_classes (int) –

Number of output classes.
**kwargs (Any, default: {} ) –

Additional keyword arguments to pass to the segmentation head.

forward ¶

forward(
    x: Tensor,
    pos_grid: Tensor,
    batch: Tensor,
    condition: Union[str, Sequence[str], None] = None,
    pos: OptTensor = None,
) -> Tensor

Forward pass of the Point Transformer V3 segmentation network.

Parameters:

x (Tensor) –

Per-point features of shape \((N, C)\).
pos_grid (Tensor) –

Integer grid coordinates of shape \((N, 3)\) used for serialization.
batch (Tensor) –

Batch indices for each point of shape \((N,)\).
condition (Union[str, Sequence[str], None], default: None ) –

Optional per-batch condition selecting the PDNorm inner norms.
pos (OptTensor, default: None ) –

Real-valued metric positions of shape \((N, 3)\). Required when attn_kind="rope"; ignored otherwise.

Returns:

Tensor –

Per-point segmentation logits of shape \((N, \text{num\_classes})\).

serialize ¶

serialize(
    pos_grid: Tensor,
    batch: Tensor,
    orders: Sequence[SerializationOrder],
    shuffle: bool = False,
) -> Tuple[Tensor, Tensor, Tensor]

Encode voxel-grid coordinates along one or more space-filling curves and sort the points by each code.

Parameters:

pos_grid (Tensor) –

Non-negative integer grid coordinates of shape \((N, 3)\).
batch (Tensor) –

Per-point batch index of shape \((N,)\).
orders (Sequence[SerializationOrder]) –

The \(L\) space-filling curves to encode along, one code row per order.
shuffle (bool, default: False ) –

Whether to permute orders before encoding, so consecutive blocks pick different curves.

Returns:

Tensor –

The serialization codes, the permutation sorting the points by code, and its inverse, each of
Tensor –

shape \((L, N)\).

Raises:

ValueError –

If pos_grid holds a negative coordinate, which would silently wrap around to a valid code.

Point Transformer V3

PointTransformerV3Block ¶

PointTransformerV3EncoderBlock ¶

PointTransformerV3DecoderBlock ¶

PointTransformerV3Encoder ¶

embedding_dim property ¶

configure_stem ¶

configure_blocks ¶

PointTransformerV3Decoder ¶

out_channels property ¶

configure_blocks ¶

PointTransformerV3Classification ¶

num_features property ¶

configure_encoder ¶

reset_classifier ¶

forward_head ¶

forward ¶

PointTransformerV3Segmentation ¶

num_features property ¶

configure_encoder ¶

configure_decoder ¶

reset_classifier ¶

forward ¶

serialize ¶

embedding_dim `property` ¶

out_channels `property` ¶

num_features `property` ¶

num_features `property` ¶
