LION

LION detection model.

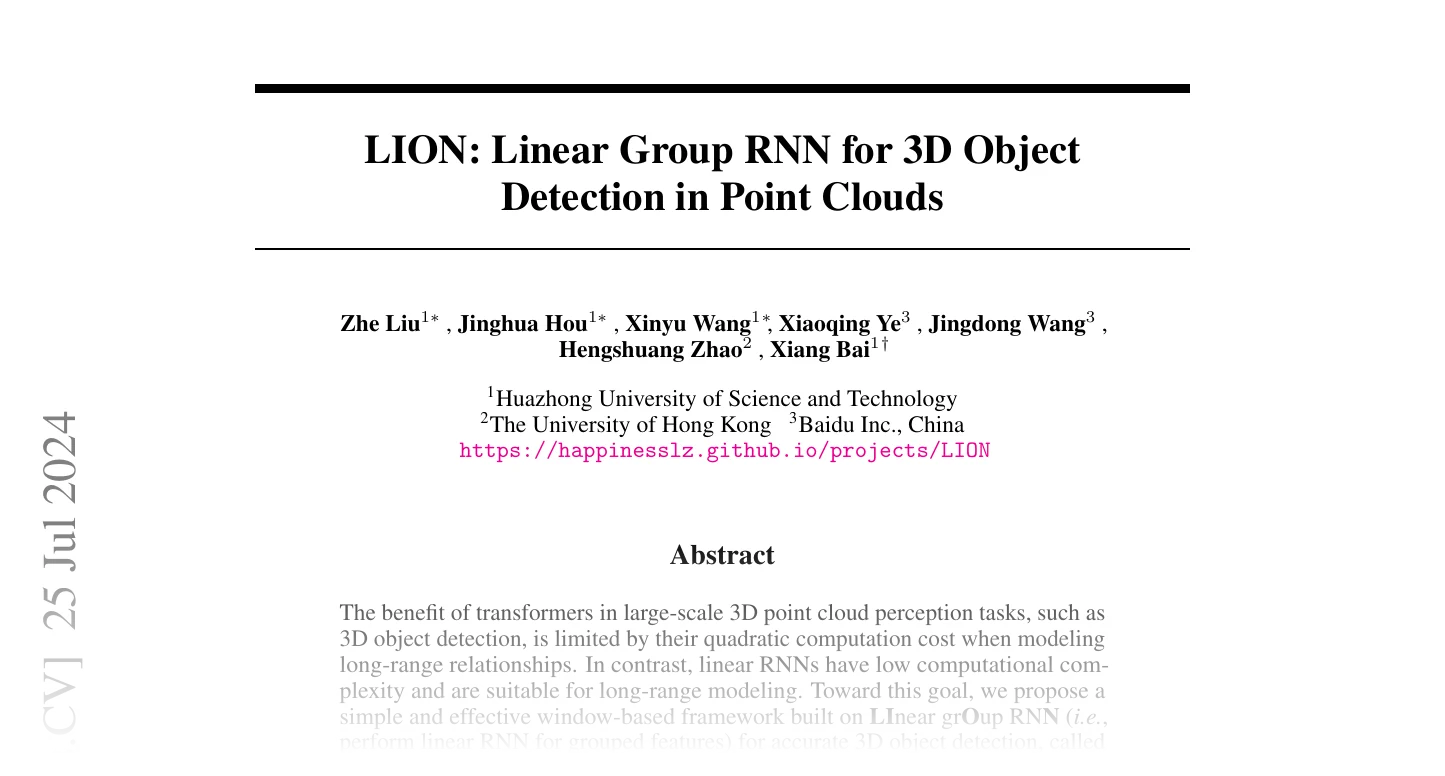

First page of LION: Linear Group RNN for 3D Object Detection in Point Clouds

2407.18232 · July 2024

Classes:

BiMamba –

Bidirectional Mamba mixer used by the LION linear group RNN (Mamba in LION's vendored ops).
MambaBlock –

Post-norm residual wrapper around BiMamba (Block).
FlattenedWindowMapping –

Window grouping / serialization for the linear group RNN (FlattenedWindowMapping).
PatchMerging3D –

Voxel-generation / down-scaling step of LION (PatchMerging3D).
PatchExpanding3D –

Scatter-back step pairing a PatchMerging3D (PatchExpanding3D).
LIONLayer –

One linear group RNN layer: window-group serialize + Mamba per direction (LIONLayer).
LIONBlock –

Hierarchical encoder/decoder stage of the LION backbone (LIONBlock).
LION3DBackbone –

LION sparse 3D backbone: hierarchical linear group RNN over voxels (LION3DBackboneOneStride).
TransFusionHeadOutput –

Raw per-query TransFusion head predictions plus the dense heatmap.
SeparateHeadTransfusion –

Per-attribute prediction head of TransFusion (SeparateHead_Transfusion).
TransformerDecoderLayer –

Single TransFusion decoder layer: self-attn + cross-attn + FFN (TransformerDecoderLayer).
BasicBlock2D –

Conv2d + BN + ReLU block used by the TransFusion heatmap head (BasicBlock2D).
TransFusionHead –

Query-based TransFusion detection head (TransFusionHead).
LIONDetection –

LION: linear group RNN (Mamba) 3D object detector (packed point format).

Functions:

window_partition –

Assign each voxel to a 3D window and return its in-window offset (get_window_coors_shift_v2).

BiMamba ¶

BiMamba(
    d_model: int,
    d_state: int = 16,
    d_conv: int = 4,
    expand: int = 2,
)

Bases: Module

Bidirectional Mamba mixer used by the LION linear group RNN (Mamba in LION's vendored ops).

The input window-group sequence is projected to the Mamba inner width and scanned both forward and (sequence-flipped) backward by two independent selective-scan branches with separate input convs, \(\Delta\) projections and state matrices (\(A\), \(A_b\), \(D\), \(D_b\)); the two scans are summed (after un-flipping the backward branch) and projected back to \(d_\text{model}\). This is the operator the paper denotes as the linear RNN over each spatially grouped window.

Parameters:

d_model (int) –

Feature channels of the mixer input/output.
d_state (int, default: 16 ) –

SSM state width \(N\).
d_conv (int, default: 4 ) –

Depthwise causal-conv kernel width.
expand (int, default: 2 ) –

Inner-width expansion factor; \(d_\text{inner} = \text{expand} \cdot d_\text{model}\).

Shape

Input: \((B, L, d_\text{model})\)
Output: \((B, L, d_\text{model})\)

MambaBlock ¶

MambaBlock(
    d_model: int,
    d_state: int = 16,
    d_conv: int = 4,
    expand: int = 2,
)

Bases: Module

Post-norm residual wrapper around BiMamba (Block).

Computes \(x + \text{LayerNorm}(\text{BiMamba}(x))\) (post-norm residual, the LION default).

Parameters:

d_model (int) –

Feature channels.
d_state (int, default: 16 ) –

SSM state width passed to BiMamba.
d_conv (int, default: 4 ) –

Causal-conv kernel width passed to BiMamba.
expand (int, default: 2 ) –

Inner-width expansion passed to BiMamba.

FlattenedWindowMapping ¶

FlattenedWindowMapping(
    window_shape: Sequence[int],
    group_size: int,
    shift: bool,
)

Bases: Module

Window grouping / serialization for the linear group RNN (FlattenedWindowMapping).

Builds, for a voxel set, the index maps that (a) pad each scene up to a multiple of group_size (flat2win / win2flat) and (b) sort voxels into space-filling window order along the \(x\)- and \(y\)-major directions, so the Mamba operator can run over fixed-length contiguous groups.

Parameters:

window_shape (Sequence[int]) –

Window size \((w_x, w_y, w_z)\).
group_size (int) –

Sequence length of each Mamba group.
shift (bool) –

Whether windows are shifted by half their size.

PatchMerging3D ¶

PatchMerging3D(
    dim: int,
    out_dim: int = -1,
    down_scale: Sequence[int] = (2, 2, 2),
    diffusion: bool = False,
    diff_scale: float = 0.2,
)

Bases: Module

Voxel-generation / down-scaling step of LION (PatchMerging3D).

A submanifold conv (LayerNorm + GELU) refines features, then voxels are merged onto a coarser grid by summing features that fall into the same down-scaled cell. When diffusion is set, the top diff_scale fraction of voxels (ranked by mean activation) are densified by spawning zero-feature neighbors before merging, the 3D voxel-generation that lets the linear RNN reach empty space.

Parameters:

dim (int) –

Input feature channels.
out_dim (int, default: -1 ) –

Output channels of the post-merge norm; -1 keeps dim.
down_scale (Sequence[int], default: (2, 2, 2) ) –

Per-axis merge factor \((s_x, s_y, s_z)\).
diffusion (bool, default: False ) –

Enable the voxel-generation (densification) step.
diff_scale (float, default: 0.2 ) –

Fraction of voxels expanded when diffusion is set.

PatchExpanding3D ¶

PatchExpanding3D(dim: int)

Bases: Module

Scatter-back step pairing a PatchMerging3D (PatchExpanding3D).

Gathers the merged features back to the finer voxel layout (via the merge inverse map) and adds them onto the skip features at that scale.

Parameters:

dim (int) –

Feature channels (unused; kept to mirror the reference signature).

LIONLayer ¶

LIONLayer(
    dim: int,
    window_shape: Sequence[int],
    group_size: int,
    direction: Sequence[str],
    shift: bool,
    d_state: int,
    d_conv: int,
    expand: int,
)

Bases: Module

One linear group RNN layer: window-group serialize + Mamba per direction (LIONLayer).

For each serialization direction (x, y) the voxels are gathered into fixed-length groups by FlattenedWindowMapping, passed through a MambaBlock, and scattered back to voxel order.

Parameters:

dim (int) –

Feature channels.
window_shape (Sequence[int]) –

Window size \((w_x, w_y, w_z)\).
group_size (int) –

Mamba group length.
direction (Sequence[str]) –

Serialization directions (e.g. ("x", "y")).
shift (bool) –

Whether windows are shifted by half their size.
d_state (int) –

SSM state width.
d_conv (int) –

Causal-conv kernel width.
expand (int) –

Inner-width expansion factor.

LIONBlock ¶

LIONBlock(
    dim: int,
    depth: int,
    down_scales: Sequence[Sequence[int]],
    window_shape: Sequence[int],
    group_size: int,
    direction: Sequence[str],
    shift: bool,
    d_state: int,
    d_conv: int,
    expand: int,
)

Bases: Module

Hierarchical encoder/decoder stage of the LION backbone (LIONBlock).

A depth-deep stack alternating LIONLayer (with a learned position embedding) and a down-scaling PatchMerging3D on the way down, then a matching decoder that scatters features back with PatchExpanding3D.

Parameters:

dim (int) –

Feature channels.
depth (int) –

Encoder/decoder depth.
down_scales (Sequence[Sequence[int]]) –

Per-level merge factor \((s_x, s_y, s_z)\).
window_shape (Sequence[int]) –

Window size \((w_x, w_y, w_z)\).
group_size (int) –

Mamba group length.
direction (Sequence[str]) –

Serialization directions.
shift (bool) –

Whether the second layer per level uses shifted windows.
d_state (int) –

SSM state width.
d_conv (int) –

Causal-conv kernel width.
expand (int) –

Inner-width expansion factor.

LION3DBackbone ¶

LION3DBackbone(
    grid_size: Sequence[int],
    *,
    channels: int = 128,
    num_layers: int = 4,
    depths: Sequence[int] = (2, 2, 2, 2),
    layer_down_scales: Sequence[Sequence[Sequence[int]]] = (
        ((2, 2, 2), (2, 2, 2)),
        ((2, 2, 2), (2, 2, 2)),
        ((2, 2, 2), (2, 2, 2)),
        ((2, 2, 2), (2, 2, 2)),
    ),
    window_shape: Sequence[Sequence[int]] = (
        (13, 13, 32),
        (13, 13, 16),
        (13, 13, 8),
        (13, 13, 4),
    ),
    group_size: Sequence[int] = (4096, 2048, 1024, 512),
    direction: Sequence[str] = ("x", "y"),
    diffusion: bool = True,
    diff_scale: float = 0.2,
    shift: bool = True,
    d_state: int = 16,
    d_conv: int = 4,
    expand: int = 2,
)

Bases: Module

LION sparse 3D backbone: hierarchical linear group RNN over voxels (LION3DBackboneOneStride).

Four LIONBlock stages, each followed by a height down-scaling PatchMerging3D (diffusion enabled), end in a single LIONLayer over the compressed grid. The output keeps the planar resolution (one-stride) and a height of 2 for BEV folding.

Parameters:

grid_size (Sequence[int]) –

Voxel grid extent \((n_x, n_y, n_z)\).
channels (int, default: 128 ) –

Backbone feature channels.
num_layers (int, default: 4 ) –

Number of LIONBlock stages.
depths (Sequence[int], default: (2, 2, 2, 2) ) –

Per-stage encoder/decoder depth.
layer_down_scales (Sequence[Sequence[Sequence[int]]], default: (((2, 2, 2), (2, 2, 2)), ((2, 2, 2), (2, 2, 2)), ((2, 2, 2), (2, 2, 2)), ((2, 2, 2), (2, 2, 2))) ) –

Per-stage, per-depth merge factors.
window_shape (Sequence[Sequence[int]], default: ((13, 13, 32), (13, 13, 16), (13, 13, 8), (13, 13, 4)) ) –

Per-stage window size \((w_x, w_y, w_z)\).
group_size (Sequence[int], default: (4096, 2048, 1024, 512) ) –

Per-stage Mamba group length.
direction (Sequence[str], default: ('x', 'y') ) –

Serialization directions.
diffusion (bool, default: True ) –

Enable voxel-generation in the height-merge steps.
diff_scale (float, default: 0.2 ) –

Fraction of voxels expanded by diffusion.
shift (bool, default: True ) –

Whether shifted windows are used.
d_state (int, default: 16 ) –

SSM state width.
d_conv (int, default: 4 ) –

Causal-conv kernel width.
expand (int, default: 2 ) –

Inner-width expansion factor.

TransFusionHeadOutput ¶

Bases: TypedDict

Raw per-query TransFusion head predictions plus the dense heatmap.

Attributes:

center (Tensor) –

BEV center in feature-map cells, shape \((B, 2, Q)\).
height (Tensor) –

Absolute box height, shape \((B, 1, Q)\).
dim (Tensor) –

Log box size, shape \((B, 3, Q)\).
rot (Tensor) –

\((\sin\theta, \cos\theta)\), shape \((B, 2, Q)\).
vel (Tensor) –

BEV velocity, shape \((B, 2, Q)\).
iou (Tensor) –

IoU-rectification prediction in \([-1, 1]\), shape \((B, 1, Q)\).
heatmap (Tensor) –

Per-query class logits, shape \((B, C, Q)\).
query_heatmap_score (Tensor) –

Dense-heatmap score gathered at each query cell, shape \((B, C, Q)\).
query_labels (Tensor) –

Initial class of each query, shape \((B, Q)\).
dense_heatmap (Tensor) –

Dense BEV class logits, shape \((B, C, W, H)\).

SeparateHeadTransfusion ¶

SeparateHeadTransfusion(
    in_channels: int,
    head_channels: int,
    num_classes: int,
    num_layers: int = 2,
    num_heatmap_layers: int = 2,
    init_bias: float = -2.19,
    bias: bool = False,
)

Bases: Module

Per-attribute prediction head of TransFusion (SeparateHead_Transfusion).

One small MLP per box attribute, applied to the per-query features: center \((2)\), height \((1)\), dim \((3)\), rot \((2)\), vel \((2)\), iou \((1)\) and a class heatmap. The reference's \(1 \times 1\) convolutions over \((B, C, Q)\) are equivalent to linear layers over the flattened query dim, so each branch is a plain MLP. The branch widths are fixed by the box parametrization; only the number of classes and the depths are configurable.

Parameters:

in_channels (int) –

Input feature channels.
head_channels (int) –

Hidden channels of the per-attribute MLP.
num_classes (int) –

Number of classes predicted by the heatmap branch.
num_layers (int, default: 2 ) –

Number of layers per box-attribute branch.
num_heatmap_layers (int, default: 2 ) –

Number of layers of the heatmap branch.
init_bias (float, default: -2.19 ) –

Bias initialization for the heatmap output layer.
bias (bool, default: False ) –

Whether hidden layers carry a bias.

Shape

Input: \((B, C_\text{in}, Q)\) per-query features.
Output: dict of \((B, C_\text{attr}, Q)\) tensors keyed by attribute.

TransformerDecoderLayer ¶

TransformerDecoderLayer(
    embed_dim: int,
    num_heads: int,
    mlp_dim: int,
    dropout: float,
    activation: str,
    self_posembed: Module,
    cross_posembed: Module,
)

Bases: Module

Single TransFusion decoder layer: self-attn + cross-attn + FFN (TransformerDecoderLayer).

Parameters:

embed_dim (int) –

Model channels.
num_heads (int) –

Number of attention heads.
mlp_dim (int) –

FFN hidden width.
dropout (float) –

Dropout probability.
activation (str) –

FFN activation (relu/gelu).
self_posembed (Module) –

Position embedding applied to the flattened query positions (self-attention).
cross_posembed (Module) –

Position embedding applied to the flattened key positions (cross-attention).

BasicBlock2D ¶

BasicBlock2D(
    in_channels: int,
    out_channels: int,
    kernel_size: int,
    padding: int,
    bias: bool,
)

Bases: Module

Conv2d + BN + ReLU block used by the TransFusion heatmap head (BasicBlock2D).

Parameters:

in_channels (int) –

Input channels.
out_channels (int) –

Output channels.
kernel_size (int) –

Conv kernel size.
padding (int) –

Conv padding.
bias (bool) –

Whether the conv carries a bias.

TransFusionHead ¶

TransFusionHead(
    input_channels: int,
    num_classes: int,
    grid_size: Sequence[int],
    point_cloud_range: Sequence[float],
    voxel_size: Sequence[float],
    *,
    feature_map_stride: int = 2,
    hidden_channel: int = 128,
    num_proposals: int = 200,
    num_heads: int = 8,
    nms_kernel_size: int = 3,
    ffn_channel: int = 256,
    dropout: float = 0.0,
    bn_momentum: float = 0.1,
    activation: str = "relu",
    num_heatmap_layers: int = 2,
    query_radius: int = 20,
    iou_rectifier: float = 0.5,
    nms_radius: float = 0.175,
    local_max_classes: Sequence[int] = (),
    post_center_range: Sequence[float] = (
        -61.2,
        -61.2,
        -10.0,
        61.2,
        61.2,
        10.0,
    ),
)

Bases: Module

Query-based TransFusion detection head (TransFusionHead).

A shared conv produces a BEV feature map and a dense class heatmap; the top num_proposals heatmap peaks initialize object queries that attend (self- then local-cross-attention) to BEV features via a TransformerDecoderLayer. Per-query box attributes are regressed by a SeparateHeadTransfusion. decode rescores by IoU and applies per-task circular NMS (nuScenes ped/cone) to yield final boxes.

Reference implementation: mit-han-lab/bevfusion (TransFusionHead).

Parameters:

input_channels (int) –

BEV feature channels feeding the shared conv.
num_classes (int) –

Number of foreground classes.
grid_size (Sequence[int]) –

Voxel grid extent \((n_x, n_y, n_z)\).
point_cloud_range (Sequence[float]) –

Range \((x_\min, y_\min, z_\min, x_\max, y_\max, z_\max)\).
voxel_size (Sequence[float]) –

Voxel size \((v_x, v_y, v_z)\).
feature_map_stride (int, default: 2 ) –

BEV stride relating feature pixels to metric coordinates.
hidden_channel (int, default: 128 ) –

Query / decoder feature width.
num_proposals (int, default: 200 ) –

Number of object queries.
num_heads (int, default: 8 ) –

Decoder attention heads.
nms_kernel_size (int, default: 3 ) –

Heatmap local-max pooling kernel.
ffn_channel (int, default: 256 ) –

Decoder FFN width.
dropout (float, default: 0.0 ) –

Decoder dropout.
bn_momentum (float, default: 0.1 ) –

BatchNorm momentum override.
activation (str, default: 'relu' ) –

Decoder FFN activation.
num_heatmap_layers (int, default: 2 ) –

Layers in the heatmap branch of the prediction head.
query_radius (int, default: 20 ) –

Half-width of the local cross-attention window.
iou_rectifier (float, default: 0.5 ) –

Per-class exponent blending heatmap score with predicted IoU.
nms_radius (float, default: 0.175 ) –

Per-task circular-NMS radius (only the local_max_classes use \(> 0\)).
local_max_classes (Sequence[int], default: () ) –

Crowded small-object class indices (nuScenes pedestrian / traffic-cone): their heatmap peaks skip the kernel local-max NMS in predict and each gets its own circular NMS task in decode. Empty by default so the head stays agnostic to the label set.
post_center_range (Sequence[float], default: (-61.2, -61.2, -10.0, 61.2, 61.2, 10.0) ) –

Box-center range filter applied at decode.

Methods:

predict –

Runs the head on a BEV feature map: initializes the queries from the dense heatmap, then decodes them.
decode –

Decode raw head predictions into raw candidate detections (no NMS).

predict ¶

predict(inputs: Tensor) -> TransFusionHeadOutput

Runs the head on a BEV feature map: initializes the queries from the dense heatmap, then decodes them.

Parameters:

inputs (Tensor) –

BEV features, shape \((B, C, W, H)\).

Returns:

TransFusionHeadOutput –

The raw per-query predictions and the dense heatmap.

decode ¶

decode(preds_dicts: TransFusionHeadOutput) -> Detection3D

Decode raw head predictions into raw candidate detections (no NMS).

Multiplies the sigmoid query scores by the gathered dense-heatmap score, recovers oriented boxes, rescores each by predicted IoU (iou_rectifier), and filters by the post-center range. The predicted BEV velocity \((v_x, v_y)\) of each kept box is returned under velocity. The full candidate set is returned; the evaluation pipeline applies the per-task circular NMS (on the local_max_classes, e.g. the nuScenes pedestrian / traffic-cone) via the torch_pointcloud.utils.box3d utilities (see the benchmark example).

Parameters:

preds_dicts (TransFusionHeadOutput) –

The dict returned by forward / predict.

Returns:

Detection3D –

Packed candidate detections {"boxes": (K, 7), "scores": (K,), "labels": (K,), "batch": (K,)}
Detection3D –

(PyG layout), plus "velocity" \((K, 2)\).

LIONDetection ¶

LIONDetection(
    in_channels: int = 5,
    num_classes: int = 10,
    *,
    voxel_size: Sequence[float] = (0.3, 0.3, 0.25),
    point_cloud_range: Sequence[float] = (
        -54.0,
        -54.0,
        -5.0,
        54.0,
        54.0,
        3.0,
    ),
    channels: int = 128,
    vfe_num_filters: Sequence[int] = (128, 128),
    depths: Sequence[int] = (2, 2, 2, 2),
    window_shape: Sequence[Sequence[int]] = (
        (13, 13, 32),
        (13, 13, 16),
        (13, 13, 8),
        (13, 13, 4),
    ),
    group_size: Sequence[int] = (4096, 2048, 1024, 512),
    diffusion: bool = True,
    diff_scale: float = 0.2,
    layer_nums: Sequence[int] = (1, 2, 2),
    layer_strides: Sequence[int] = (1, 2, 2),
    num_filters: Sequence[int] = (128, 128, 256),
    upsample_strides: Sequence[float] = (0.5, 1, 2),
    num_upsample_filters: Sequence[int] = (128, 128, 128),
    feature_map_stride: int = 2,
    local_max_classes: Sequence[int] = (),
    d_state: int = 16,
    d_conv: int = 4,
    expand: int = 2,
)

Bases: DetectionModel

LION: linear group RNN (Mamba) 3D object detector (packed point format).

Reference: Liu et al., 2024. Reference implementation: happinesslz/LION.

Points are encoded into voxels by a dynamic mean VFE, processed by a hierarchical sparse backbone that serializes voxels into spatially grouped windows and runs a bidirectional Mamba operator (the linear group RNN), with periodic 3D voxel-generation / height-merging steps. The one-stride output is folded to a dense BEV map, refined by a residual 2D backbone, and decoded by a query-based TransFusionHead.

Parameters:

in_channels (int, default: 5 ) –

Raw point feature channels including xyz (5 for nuScenes \(x, y, z, \text{intensity}, \Delta t\)).
num_classes (int, default: 10 ) –

Number of foreground classes (10 for nuScenes).
voxel_size (Sequence[float], default: (0.3, 0.3, 0.25) ) –

Voxel size \((v_x, v_y, v_z)\).
point_cloud_range (Sequence[float], default: (-54.0, -54.0, -5.0, 54.0, 54.0, 3.0) ) –

Range \((x_\min, y_\min, z_\min, x_\max, y_\max, z_\max)\).
channels (int, default: 128 ) –

Backbone / VFE feature channels.
vfe_num_filters (Sequence[int], default: (128, 128) ) –

PFN widths of the dynamic mean VFE.
depths (Sequence[int], default: (2, 2, 2, 2) ) –

Per-stage encoder/decoder depth of the 3D backbone.
window_shape (Sequence[Sequence[int]], default: ((13, 13, 32), (13, 13, 16), (13, 13, 8), (13, 13, 4)) ) –

Per-stage window size \((w_x, w_y, w_z)\).
group_size (Sequence[int], default: (4096, 2048, 1024, 512) ) –

Per-stage Mamba group length.
diffusion (bool, default: True ) –

Enable voxel-generation in the height-merge steps.
diff_scale (float, default: 0.2 ) –

Fraction of voxels expanded by diffusion.
layer_nums (Sequence[int], default: (1, 2, 2) ) –

2D backbone residual-block counts per level.
layer_strides (Sequence[int], default: (1, 2, 2) ) –

2D backbone downsample strides per level.
num_filters (Sequence[int], default: (128, 128, 256) ) –

2D backbone channel widths per level.
upsample_strides (Sequence[float], default: (0.5, 1, 2) ) –

2D backbone upsample factors per level.
num_upsample_filters (Sequence[int], default: (128, 128, 128) ) –

2D backbone upsample channels per level.
feature_map_stride (int, default: 2 ) –

BEV stride of the head.
local_max_classes (Sequence[int], default: () ) –

Crowded small-object class indices passed to the head (nuScenes pedestrian / traffic-cone); see TransFusionHead.
d_state (int, default: 16 ) –

SSM state width.
d_conv (int, default: 4 ) –

Causal-conv kernel width.
expand (int, default: 2 ) –

Inner-width expansion factor of the Mamba operator.

Methods:

configure_vfe –

Build the dynamic mean voxel feature encoder.
configure_backbone_3d –

Build the sparse 3D linear group RNN backbone.
configure_backbone –

Build the residual 2D BEV backbone.
configure_head –

Build the query-based TransFusion detection head.
decode –

Decode a forward output into raw candidate detections (see TransFusionHead.decode).
reset_classifier –

Replace the classification branch of the detection head for num_classes outputs.

Attributes:

num_features (int) –

Channel count \(C\) of the BEV feature map entering the head.

num_features `property` ¶

num_features: int

Channel count \(C\) of the BEV feature map entering the head.

configure_vfe ¶

configure_vfe() -> DynamicMeanVFE

Build the dynamic mean voxel feature encoder.

configure_backbone_3d ¶

configure_backbone_3d() -> LION3DBackbone

Build the sparse 3D linear group RNN backbone.

configure_backbone ¶

configure_backbone() -> BaseBEVResBackbone

Build the residual 2D BEV backbone.

configure_head ¶

configure_head() -> TransFusionHead

Build the query-based TransFusion detection head.

decode ¶

decode(out: TransFusionHeadOutput) -> Detection3D

Decode a forward output into raw candidate detections (see TransFusionHead.decode).

reset_classifier ¶

reset_classifier(num_classes: int) -> None

Replace the classification branch of the detection head for num_classes outputs.

Models whose head is not rebuildable in isolation raise NotImplementedError.

window_partition ¶

window_partition(
    pos: Tensor,
    sparse_shape: Sequence[int],
    window_shape: Sequence[int],
    shift: bool,
) -> Tuple[Tensor, Tensor, Tensor]

Assign each voxel to a 3D window and return its in-window offset (get_window_coors_shift_v2).

Each voxel is assigned to a 3D window of size window_shape (optionally shifted by half a window, Swin-style), yielding two flat per-voxel window keys: one ordering windows \(x\)-major (win_index_x) and one \(y\)-major (win_index_y). The within-window \((z, y, x)\) offset is returned for the intra-window order.

Parameters:

pos (Tensor) –

Voxel indices \((N, 4)\) as \((\text{batch}, z, y, x)\).
sparse_shape (Sequence[int]) –

Grid extent \((z, y, x)\).
window_shape (Sequence[int]) –

Window size \((w_x, w_y, w_z)\).
shift (bool) –

Whether to offset windows by half their size.

Returns:

Tuple[Tensor, Tensor, Tensor] –

(win_index_x, win_index_y, offsets) of shapes \((N,)\), \((N,)\), \((N, 3)\).

LION

BiMamba ¶

MambaBlock ¶

FlattenedWindowMapping ¶

PatchMerging3D ¶

PatchExpanding3D ¶

LIONLayer ¶

LIONBlock ¶

LION3DBackbone ¶

TransFusionHeadOutput ¶

SeparateHeadTransfusion ¶

TransformerDecoderLayer ¶

BasicBlock2D ¶

TransFusionHead ¶

predict ¶

decode ¶

LIONDetection ¶

num_features property ¶

configure_vfe ¶

configure_backbone_3d ¶

configure_backbone ¶

configure_head ¶

decode ¶

reset_classifier ¶

window_partition ¶

num_features `property` ¶
