Feature Maps¶

Open in Colab · Download notebook

All registered models compute a representation (a.k.a. embeddings, feature maps, descriptors...) that you can use for downstream tasks such as clusterize objects, retrieval or visualize the learned representations.

Segmentation backbones will return features as a per-point feature \((N, C)\) tensor, and classifiers will return a global descriptor \((B, C)\) tensor.

Every classification and segmentation model follows the same contract: build it with num_classes=0 (or call reset_classifier(0)) and forward returns those features instead of logits, model.num_features is their width \(C\), and forward_head(..., pre_logits=True) returns the same tensor on a model that still has its head. The encoder alone is available through forward_features.

Detection models keep the same vocabulary without a headless mode: forward_features returns the backbone map at its own resolution (a BEV map \((B, C, H, W)\) for pillar and voxel detectors, a sparse voxel tensor for VoxelNeXt, packed per-point or per-seed features for the point-based ones) and model.num_features is its channel count \(C\).

Per-point features of one ScanNet room under fourteen pretrained backbones, colored by their top principal components

Per-point features from a pretrained encoder¶

Self-supervised encoders are trained without labels, so their features are not shaped by one dataset's class list. For example, concerto-large-lp.scannet20.pointcept carries a frozen Concerto encoder.

Download the sample_scene_labeled.ply to get started. This is a labeled ScanNet scene.

import numpy as np
import torch
from plyfile import PlyData

import torch_pointcloud as tp
from torch_pointcloud.utils.data import collate

# Load the sample scene
ply = PlyData.read("sample_scene_labeled.ply")["vertex"]
pos = np.stack([ply["x"], ply["y"], ply["z"]], 1).astype("float32")
normal = np.stack([ply["nx"], ply["ny"], ply["nz"]], 1).astype("float32")
color = np.stack([ply["red"], ply["green"], ply["blue"]], 1).astype("float32")
segment = np.asarray(ply["segment"]).astype("int64")

sample = {
    "pos": torch.from_numpy(pos),
    "color": torch.from_numpy(color),
    "normal": torch.from_numpy(normal),  # ...checkpoint require normals
    "segment": torch.from_numpy(segment),
}

# Load the pretrained model
model, info = tp.create_model(
    "concerto-large-lp.scannet20.pointcept",
    task="segmentation",
    pretrained=True,
    return_info=True,
)
model = model.cuda().eval()

# Preprocess the sample
transform = info["transform"]
sample = transform(sample)

data = collate([sample])
with torch.inference_mode():
    feat, _, _, intermediates = model.forward_features(
        data["x"].cuda(),
        data["pos_grid"].cuda(),
        data["batch"].cuda(),
        return_intermediates=True,
    )
    print("encoder    ", tuple(feat.shape))
    feat, _, _ = model.forward_decoder(feat, intermediates)
    print("per point  ", tuple(feat.shape))

# encoder     (964, 768)
# per point   (114118, 1728)

The encoder pools the room down to 964 tokens. The decoder unpools them back to one feature per voxelized point and concatenates every scale, so \(C\) grows to 1728.

Visualize features with PCA¶

Project each feature onto its top principal components and read three of them as RGB. Points with similar features get similar colors, and no label is involved.

import torch


def pca_color(feat: torch.Tensor, brightness: float = 1.2) -> torch.Tensor:
    """Map a per-point feature (N, C) to RGB via its top components."""
    _, _, v = torch.pca_lowrank(feat, center=True, q=6, niter=5)
    proj = feat @ v
    proj = proj[:, :3] * 0.6 + proj[:, 3:6] * 0.4
    lo, hi = proj.min(0, keepdim=True)[0], proj.max(0, keepdim=True)[0]
    return ((proj - lo) / (hi - lo).clamp_min(1e-6) * brightness).clamp(0, 1)


rgb = pca_color(feat)
print(f"RGB: {rgb.shape}, min: {rgb.min()}, max: {rgb.max()}")
# RGB: torch.Size([4096, 3]), min: 0.0, max: 1.0

import matplotlib.pyplot as plt


def show_cloud(cloud, title, point_size=3.0):
    _, ax = plt.subplots(1, 1, figsize=(4.2, 4.0), subplot_kw={"projection": "3d"})
    pos = np.asarray(cloud["pos"])
    ax.scatter(*pos.T, c=np.asarray(cloud["color"]), s=point_size, linewidths=0, depthshade=False)
    ax.set_box_aspect(np.ptp(pos, axis=0))
    ax.set_title(title, fontsize=10)
    ax.set_axis_off()
    plt.show()


color = rgb.cpu()[data["inverse"]].numpy()
show_cloud({"pos": pos, "color": color}, "PCA color")

Query a scene with cosine similarity¶

Normalize the features, pick one point, and take its dot product against every other point.

import torch.nn.functional as F

# the checkpoint voxelizes, so compare against the labels the model actually saw
segment = data["segment"].cuda()

feat = F.normalize(feat.float(), dim=-1)
query = 72_863                       # a point on a chair
similarity = feat[query] @ feat.t()  # (N,) in [-1, 1]

top = similarity.topk(1000).indices
print((segment[top] == segment[query]).float().mean())
# tensor(1., device='cuda:0')

One point's feature dotted against the whole room, for a query on a chair and a query on the floor

On the sample room, the 1000 nearest neighbors of that chair point are 100% chair, and those of a floor point are 98.8% floor. The encoder never saw a label; points on the same object share a feature. This is nearest-neighbor label transfer: annotate one point, propagate to the region.

Outdoor LiDAR¶

The same steps on a SemanticKITTI scan, with the SPVCNN compute ladder and RandLA-Net. The input panel is colored by height, as a LiDAR scan carries intensity rather than RGB.

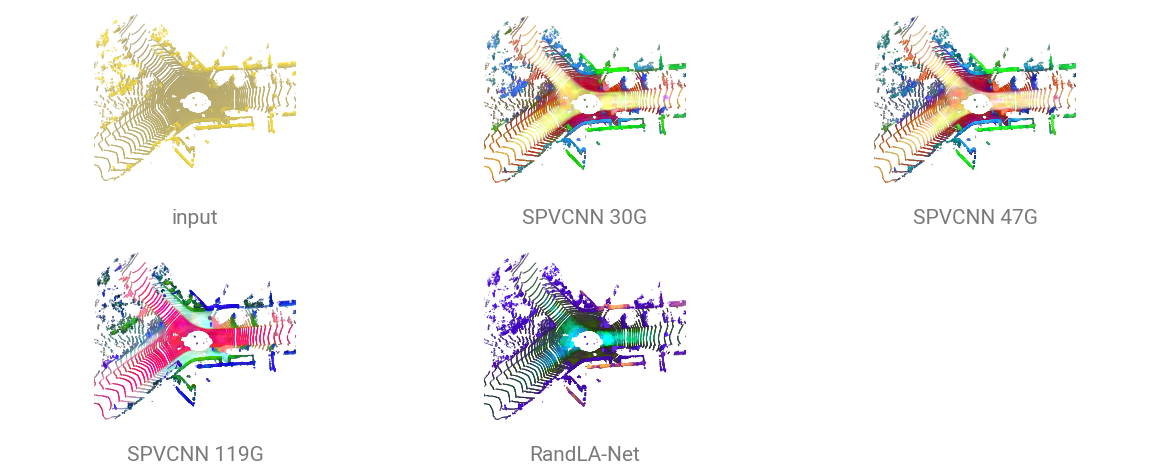

Per-point features of a SemanticKITTI scan under four pretrained backbones

Road, sidewalk, vegetation and parked cars separate in feature space.

All panels share one frame: each backbone's coordinate convention (voxel-grid integers, a normalized cube) is scaled onto the scene's extent for display. PCA is fit per panel, so colors are comparable inside a panel, not across panels.

Retrieve shapes: global descriptors¶

A classifier with its head removed is a shape encoder. Embedding ModelNet40's test split and classifying each object by its nearest neighbor recovers most of the supervised accuracy.

import torch
import torch.nn.functional as F
from tqdm import tqdm

import torch_pointcloud as tp
from torch_pointcloud.datasets import ModelNetNormalResampled
from torch_pointcloud.utils.data import PointCloudDataLoader
from torch_pointcloud.config import DATA_DIR

model, info = tp.create_model(
    "pointnet2-ssg.modelnet40.xu-yan",
    task="classification",
    pretrained=True,
    num_classes=0,
    return_info=True,
)
model = model.cuda().eval()

dataset = ModelNetNormalResampled(
    root=DATA_DIR,
    variant="40",
    train=False,
    transform=info["transform"],
)
dataloader = PointCloudDataLoader(dataset, batch_size=64, num_workers=6)

embeddings, labels = [], []
with torch.no_grad():
    for batch in tqdm(dataloader, desc="Embedding"):
        embedding = model(None, batch["pos"].cuda(), batch["batch"].cuda())  # (B, model.num_features)
        embeddings.append(F.normalize(embedding, dim=-1).cpu())
        labels.append(batch["label"])

embeddings, labels = torch.cat(embeddings), torch.cat(labels)

similarity = embeddings @ embeddings.T
similarity.fill_diagonal_(-1)
neighbours = labels[similarity.argmax(dim=1)]
print(f"1-NN retrieval accuracy: {(neighbours == labels).float().mean():.4f}")

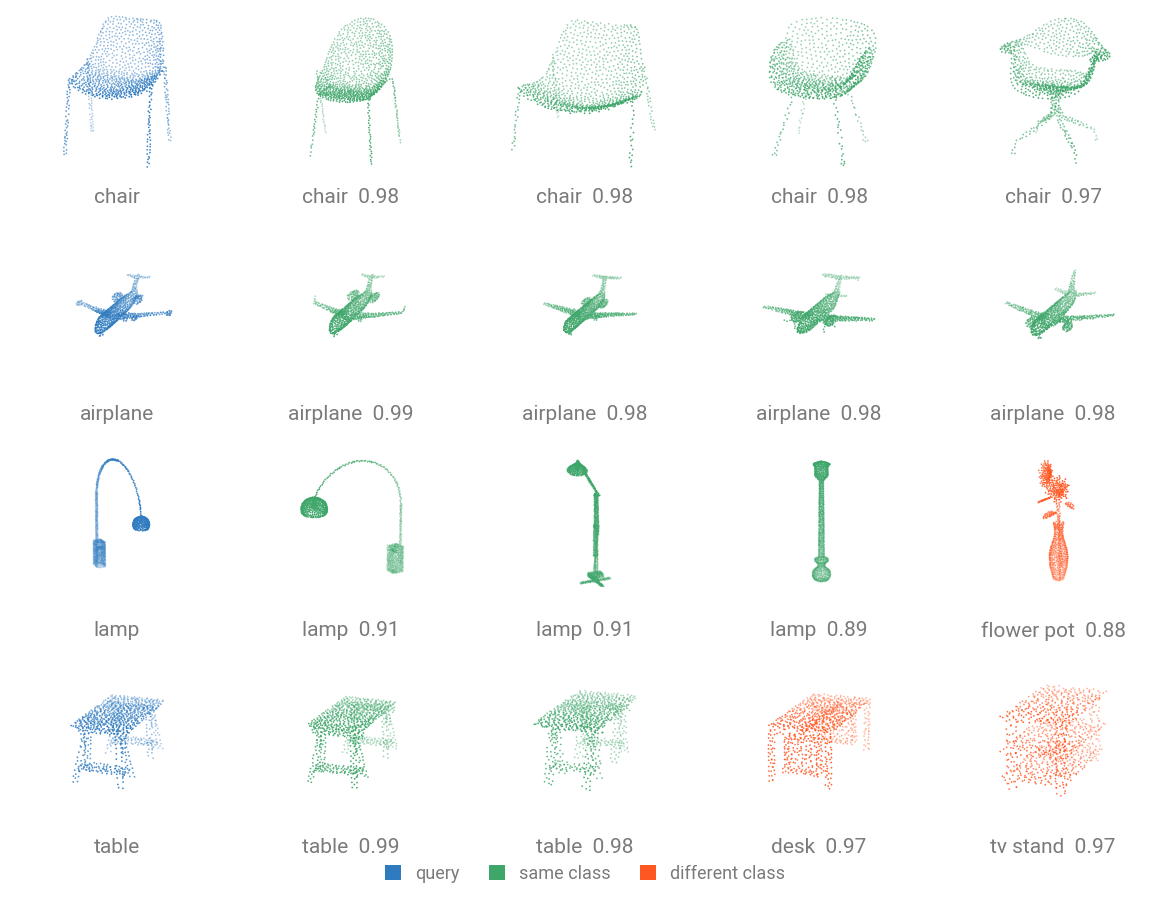

Four query objects and the four nearest test objects to each in the embedding
