Quick Start¶

This page will help you get started and run a pretrained model on a point cloud.

Run a pretrained model¶

The example reads one object of the ModelNet40 test set, which ModelNetNormalResampled downloads on first use:

import torch

import torch_pointcloud as tp
from torch_pointcloud.datasets import ModelNetNormalResampled
from torch_pointcloud.utils.data import collate

# Instantiate the model and return associated info.
model, info = tp.create_model(
    "pointnet2-ssg.modelnet40.xu-yan",
    task="classification",
    pretrained=True,
    return_info=True,
)
model = model.eval()

# Get associated transform for inference.
transform = info["transform"]

# Load input data. The dataset applies the transform, which samples points and normals together.
dataset = ModelNetNormalResampled(root="data", variant="40", train=False, download=True, transform=transform)
sample = dataset[0]

# Pack into a batch. The provided `collate` function
# handles the packed-batch convention, but you can use your own.
batch = collate([sample])

# Forward pass. Models take packed batches, never padded (B, N, ...) tensors.
with torch.no_grad():
    logits = model(batch.get("x"), batch["pos"], batch["batch"])

classes = info["weights"]["classes"]
top = logits.softmax(dim=-1).topk(3, dim=-1)
for index, score in zip(top.indices[0].tolist(), top.values[0].tolist()):
    print(f"{classes[index]:>12}  {score:.2f}")

    airplane  1.00
       plant  0.00
      guitar  0.00

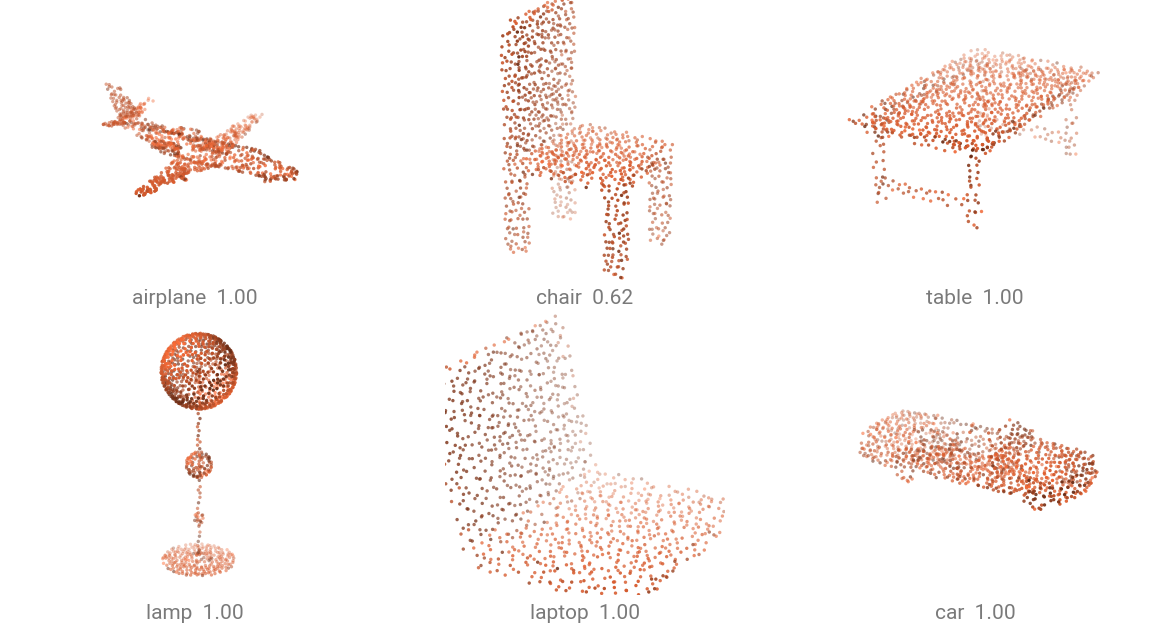

Six committed sample objects, each captioned with the class this checkpoint gives it

The packed-batch convention comes from PyTorch Geometric: instead of zero-padding clouds to a common size, we concatenate them and tag each point with its sample index. See Data conventions below.

Using a real dataset¶

The same model, over a whole dataset. ModelNetNormalResampled is what this checkpoint was trained on: each shape ships as 10,000 surface points with their normals, which is why the snippet above builds a normal key. It downloads on first use.

import torch
import torch_pointcloud.transforms as T
from torch_pointcloud.datasets import ModelNetNormalResampled
from torch_pointcloud.utils.data import PointCloudDataLoader


dataset = ModelNetNormalResampled(
    root="data",
    variant="40",
    train=False,
    download=True,
    transform=info["transform"],
)

dataloader = PointCloudDataLoader(dataset, batch_size=32)

with torch.no_grad():
    for data in dataloader:
        logits = model(data.get("x"), data["pos"], data["batch"])
        preds = logits.argmax(dim=-1)  # (32,) one class per cloud
        break

PointCloudDataLoader is a DataLoader with the packed-batch collate wired in: per-point tensors are concatenated along the batch axis and a batch index is built for you, while scene-level tensors (label) are stacked.

Data conventions¶

All point clouds use a packed (flat-batch) format (a.k.a. ragged tensors). This is what PyTorch Geometric uses. For a batch of \(B\) samples with \(N_i\) points each (\(N = N_1 + N_2 + \ldots + N_B\)):

Three clouds of different sizes as a list of tensors, as one padded tensor, and packed

Tensor	Shape	Description
`pos`	\((N, 3)\)	3D coordinates, all points concatenated
`x`	\((N, C)\)	Per-point features
`batch`	\((N,)\)	Per-point batch index \((0, \ldots, B-1)\)
`normal`, `color`	\((N, 3)\)	Per-point attributes
`segment`	\((N,)\)	Per-point semantic label
`label`	\((B,)\)	Scene / object-level label
