Transforms¶

A transform takes one sample dict and returns a new one. Compose chains them, and a dataset applies the chain to every sample it loads. The API follows MONAI's dict transforms and PyTorch Geometric's Data conventions.

Why a dict-based API?

The dict-based API keeps composition flexible and makes the inputs and outputs of each transform explicit.

PyTorch Geometric transforms, in contrast, take a Data object. That is limiting once you want to carry extra keys such as intensity or color, because every transform then has to handle every attribute the object holds, defaulting the ones you did not provide to None.

Transforms are designed to manipulate specific keys of the input data, which makes the operations explicit and easier to compose.

import torch
import torch_pointcloud.transforms as T

pos = torch.randn(2048, 3)
color = torch.rand(2048, 3)

pipeline = T.Compose([
    T.Rescale(keys="pos", method="centroid"),
    T.Shift(keys="pos", method="bbox", axes=[0, 1]),
    T.RandomSample(keys=("pos", "color"), num_samples=1024),
])

scene = pipeline({"pos": pos, "color": color})

Atomic operations

Each transform is designed as an atomic operation to make it easier to compose and reuse.

Pretrained checkpoints

A pretrained checkpoint carries its own preprocessing in info["transform"], for inference on its dataset.

Sampling and downsampling¶

	Transform	Description

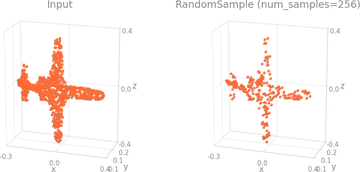

	`RandomSample`	Uniform random subsample with shared indices across keys

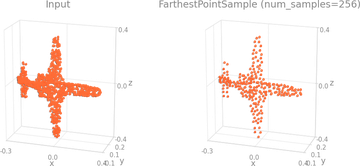

	`FarthestPointSample`	FPS subsample (well-distributed)

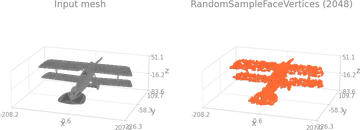

	`RandomSampleFaceVertices`	Sample points on a mesh's faces

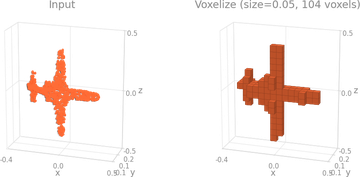

	`Voxelize`	Voxel-grid downsample with per-voxel reduction

Sampling keys¶

Any transform that changes the number of points keeps pos, x, segment and batch aligned at the new resolution and records how to get back:

Key	Shape	Written by	Meaning
`origin_pos`	\((N_\text{origin}, 3)\)	a `CopyItems` step in every registered pipeline	the source cloud, in the same frame as `pos`
`origin_segment`	\((N_\text{origin},)\)	the same step, when the pipeline carries labels	the source labels, in the model's label space
`inverse`	\((N_\text{origin},)\)	`Voxelize`, `DivisiblePad` through `dst_inverse_key`	source row to predictor row: `preds[inverse]` scores at full resolution
`index`	\((N,)\)	the selection samplers (`FarthestPointSample`, `RandomSample`, `SphereCrop`, ...) through `dst_index_key`	predictor row to source row: `origin_pos[index]` is `pos`

Chained steps compose these maps, so they always address the outermost source. Registered pipelines set the keys; set them on your own samplers to get the maps.

Geometry / shifting¶

	Transform	Description

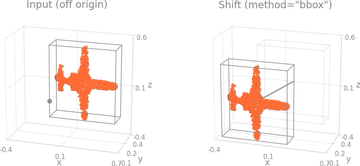

	`Shift`	Subtract a computed offset (`bbox`, `centroid`, or `min`)

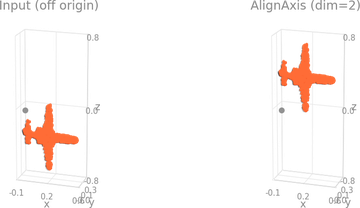

	`AlignAxis`	Shift one axis so its min is zero

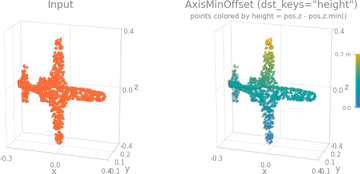

	`AxisMinOffset`	Per-point offset from axis minimum (height feature)

Scaling / normalization¶

	Transform	Description

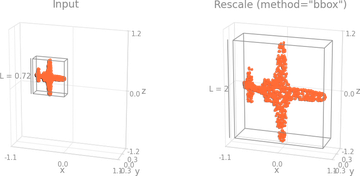

	`Rescale`	Center and rescale to unit extent (`centroid` / `bbox` / `centroid_extent` / `min_sphere`)

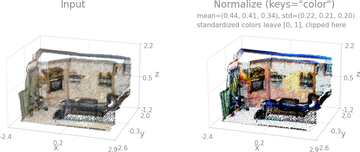

	`Normalize`	Per-channel \((x - \mu) / \sigma\) standardization

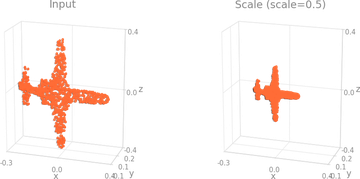

	`Scale`	Multiply by a scalar

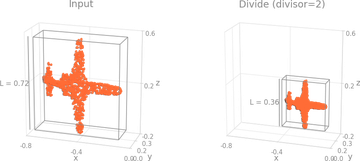

	`Divide`	Divide by a scalar

Masking and filtering¶

	Transform	Geometry

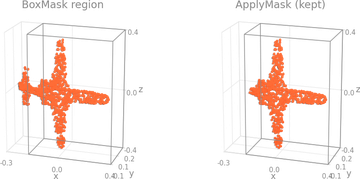

	`BoxMask`	Axis-aligned bounding box (AABB)

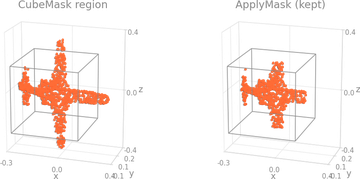

	`CubeMask`	L∞ / Chebyshev ball (hypercube)

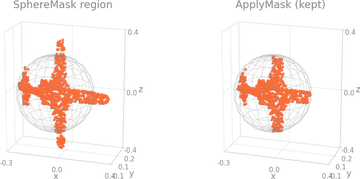

	`SphereMask`	L2 / Euclidean ball

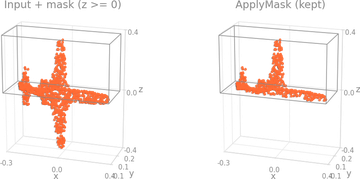

	`ApplyMask`	Apply any precomputed mask to one or more keys

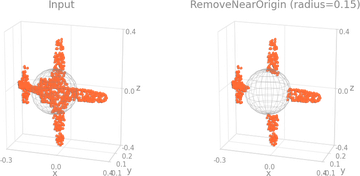

	`RemoveNearOrigin`	One-shot L2 filter around origin

Key / dict manipulation¶

	Transform	Description

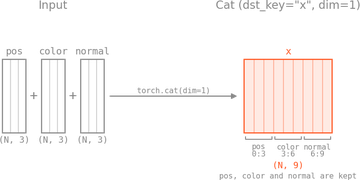

	`Cat`	Concatenate multiple keys' tensors along a dim

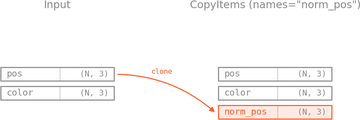

	`CopyItems`	Clone a key's value under a new name

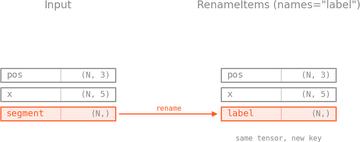

	`RenameItems`	Move a key to a new name

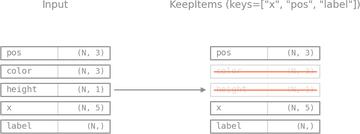

	`KeepItems`	Drop everything not in a whitelist

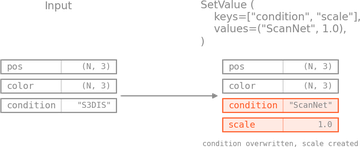

	`SetValue`	Set keys to literal values

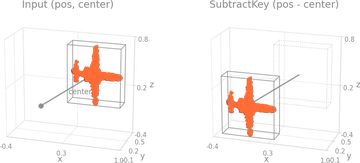

	`SubtractKey`	`data[k] - data[sub_k]` element-wise

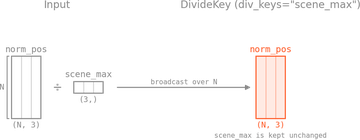

	`DivideKey`	`data[k] / data[div_k]` element-wise

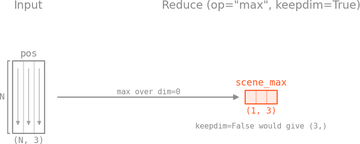

	`Reduce`	Reduce a tensor along a dim (`min`/`max`/`mean`/`sum`)

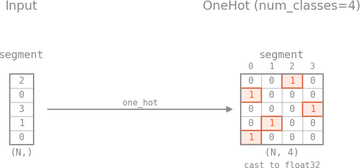

	`OneHot`	One-hot encode integer labels

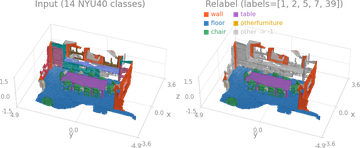

	`Relabel`	Remap integer labels via a lookup table

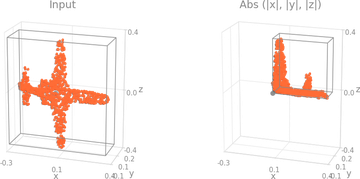

	`Abs`	Element-wise absolute value

Type / device¶

	Transform	Description

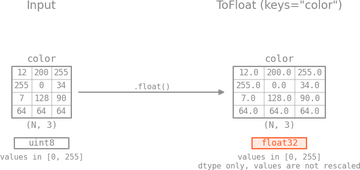

	`ToFloat`	Cast tensors to float32

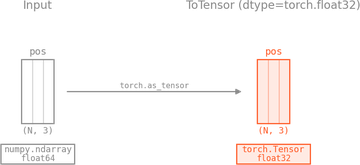

	`ToTensor`	Convert lists / arrays to tensors

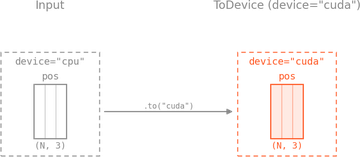

	`ToDevice`	Move to a device

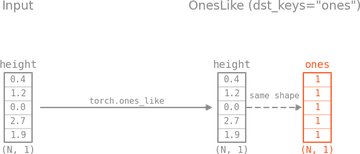

	`OnesLike`	Add a key whose tensor is `torch.ones_like(...)`

Octree (optional, requires `ocnn`)¶

	Transform	Description

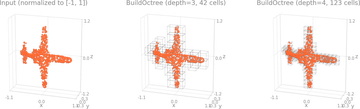

	`BuildOctree`	Build an octree from positions

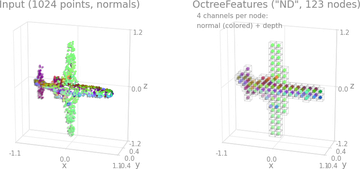

	`OctreeFeatures`	Extract per-node features from an octree
