Object Detection¶

Open in Colab · Download notebook

Object detection predicts one oriented 3D box per object: a center, an extent and a heading, plus a class and a score. Boxes are packed like points, \((K, 7)\) rows of \((c_x, c_y, c_z, d_x, d_y, d_z, \theta)\) with a batch index naming the scene each box belongs to. \(\theta\) is counter-clockwise about \(+z\) from \(+x\), and axis-aligned detectors leave it at zero.

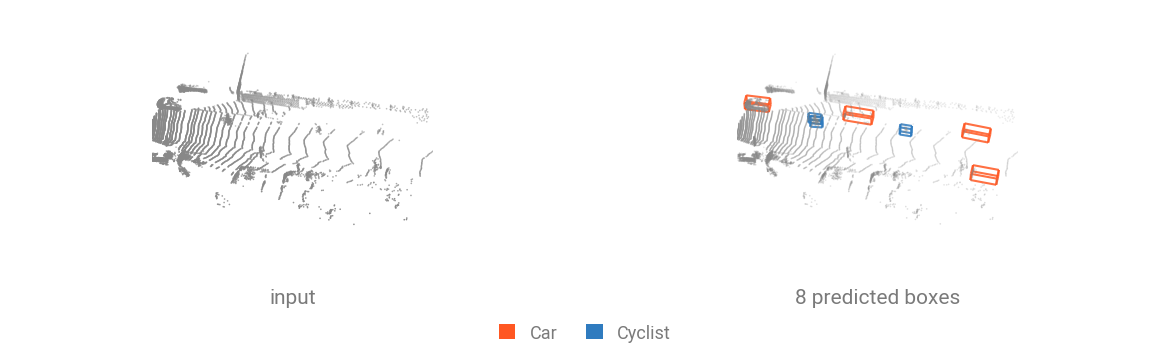

Detected boxes on a scan

Run a pretrained checkpoint¶

The example reads one lidar frame of the KITTI training split, cropped to the camera field of view. The dataset has no automatic download: get it from its download page and extract it under data/KITTI/raw/.

Pass return_info=True to also get the transform registered with the checkpoint, which encodes the points into pillars. The forward method returns raw proposals and decode turns them into boxes. NMS and score thresholding belong to the evaluation protocol, so you can customize them.

import torch

import torch_pointcloud as tp
from torch_pointcloud.datasets import KITTI
from torch_pointcloud.utils.box3d import nms3d
from torch_pointcloud.utils.data import DataKeys, collate

# Load the pretrained model
model, info = tp.create_model(
    "pointpillars.kitti.openpcdet",
    task="detection",
    pretrained=True,
    return_info=True,
)
model = model.cuda().eval()

# Get associated transform
transform = info["transform"]

# Load one frame of the KITTI training split
dataset = KITTI(root="data", train=True, fov=True, transform=transform)
sample = dataset[211]

# Collate the sample into a batch, keeping the pillars packed
data = collate([sample], cat_keys=[DataKeys.POS_VOXEL])
print(f"Data keys: {data.keys()}")

# Inference pass
with torch.no_grad():
    out = model(
        data["voxel"].cuda(),
        data["pos_voxel"].cuda(),
        data["voxel_num_points"].cuda(),
        data["batch_pos_voxel"].cuda(),
    )

# Decode the raw proposals into boxes
det = model.decode(out)
boxes, scores, labels, index = det["boxes"], det["scores"], det["labels"], det["batch"]
print(f"Boxes shape: {tuple(boxes.shape)}")

# Cut the low scores, then deduplicate what is left
keep = (scores > 0.1).nonzero().squeeze(-1)
keep = keep[nms3d(boxes[keep], scores[keep], 0.01, batch=index[keep], rotated=True)]
print(f"Kept boxes: {len(keep)}")

# Report the confident ones
classes = info["weights"]["classes"]
for i in keep[scores[keep] > 0.5]:
    box = boxes[i]
    print(f"{classes[int(labels[i])]:>12}  {scores[i]:.2f}  center=({box[0]:.2f}, {box[1]:.2f}, {box[2]:.2f})  yaw={box[6]:.2f}")

# Data keys: dict_keys(['pos', 'intensity', 'box', 'label', 'truncation', 'occlusion', 'bbox_height', 'frame', 'x', 'voxel', 'pos_voxel', 'voxel_num_points', 'batch', 'batch_pos_voxel'])
# Boxes shape: (321408, 7)
# Kept boxes: 17
#          Car  0.94  center=(8.30, 5.00, -0.87)  yaw=3.16
#          Car  0.93  center=(24.25, 5.41, -0.83)  yaw=3.11
#          Car  0.89  center=(45.08, -2.77, -0.62)  yaw=6.23
#      Cyclist  0.84  center=(32.00, 3.62, -0.62)  yaw=3.11
#          Car  0.80  center=(42.77, 5.07, -0.73)  yaw=3.07
#      Cyclist  0.77  center=(18.10, 2.97, -0.74)  yaw=3.23
#          Car  0.76  center=(4.41, -2.60, -0.94)  yaw=6.29
#      Cyclist  0.74  center=(17.73, 3.61, -0.81)  yaw=3.14

An anchor-based head scores every anchor of its grid, so decode returns 321 408 boxes: the score cut leaves 218, rotated NMS at IoU 0.01 collapses those to 17, and the eight most confident are the ones the figure draws. The yaw values are non-zero, since KITTI annotates oriented boxes.

Inputs and outputs¶

Voxel-based detectors read the pillar / voxel layout their registered transform produces, one argument per tensor it writes.

Argument	Shape	Description
`voxel`	\((V, P, C)\)	Points gathered per voxel, zero-padded to \(P\) slots
`pos_voxel`	\((V, 3)\)	Integer voxel-grid coordinates
`voxel_num_points`	\((V,)\)	How many of the \(P\) slots each voxel actually fills
`batch`	\((V,)\)	Index tensor associating each voxel with its scene
returns	dict of tensors	The raw head outputs, which `model.decode(...)` turns into boxes

decode returns a packed dict: boxes \((K, 7)\), scores \((K,)\), labels \((K,)\) and a batch index \((K,)\) naming the scene each box came from.

Indoor detectors read points instead, which changes the call but not the output.

Family	Checkpoints	Call
Point-based (indoor)	`votenet.`, `3detr`, `pointrcnn.*`	`model(x, pos, batch)`
Voxel-based (driving)	`pointpillars.`, `second.`, `voxelnext.`, `lion-`	`model(voxel, pos_voxel, voxel_num_points, batch_voxel)`

Collating a batch¶

cat_keys keeps a ragged per-scene key packed and emits a matching batch_<key> index. Voxel counts vary per scene, so pos_voxel collates that way and arrives with batch_pos_voxel; ground-truth boxes vary too, so box arrives with batch_box.

from pathlib import Path

import torch_pointcloud as tp
import torch_pointcloud.transforms as T
from torch_pointcloud.config import DATA_DIR
from torch_pointcloud.datasets import KITTI
from torch_pointcloud.datasets.kitti import KITTI_CLASSES
from torch_pointcloud.utils.data import DataKeys, PointCloudDataLoader

model, info = tp.create_model(
    "pointpillars.kitti.openpcdet",
    task="detection",
    pretrained=True,
    return_info=True,
)
model = model.cuda().eval()

# The dataset annotates every KITTI class, the checkpoint predicts three of them
classes = info["weights"]["classes"]
relabel = T.RelabelBoxes(
    keys=["box", "label"],
    mapping={KITTI_CLASSES.index(name): i for i, name in enumerate(classes)},
)

dataset = KITTI(
    root=DATA_DIR,
    train=True,
    split_file=Path(DATA_DIR, "KITTI", "raw", "ImageSets", "val.txt"),
    transform=T.Compose([relabel, info["transform"]]),
)
dataloader = PointCloudDataLoader(
    dataset,
    batch_size=4,
    num_workers=4,
    cat_keys=[DataKeys.BOX, DataKeys.POS_VOXEL],
)

data = next(iter(dataloader))
print(f"Box shape: {tuple(data['box'].shape)}")
print(f"Batch box shape: {tuple(data['batch_box'].shape)}")
print(f"Voxel shape: {tuple(data['voxel'].shape)}")

Evaluate on a dataset¶

The detection scorers live in torch_pointcloud.metrics. box_matches reduces each batch to a compact record, and average_precision3d scores the records of the whole split, here with one IoU threshold per class as KITTI requires: Car at 0.7, Pedestrian and Cyclist at 0.5, over the 11-point recall grid.

import torch
from tqdm.auto import tqdm

from torch_pointcloud.utils.box3d import nms3d
from torch_pointcloud.metrics import average_precision3d, box_matches

matches = []
with torch.no_grad():
    for data in tqdm(dataloader, desc="Evaluating"):
        out = model(
            data["voxel"].cuda(),
            data["pos_voxel"].cuda(),
            data["voxel_num_points"].cuda(),
            data["batch_pos_voxel"].cuda(),
        )
        det = model.decode(out)
        boxes, scores = det["boxes"], det["scores"]
        labels, index = det["labels"], det["batch"]

        keep = (scores > 0.1).nonzero().squeeze(-1)
        keep = keep[nms3d(boxes[keep], scores[keep], 0.01, batch=index[keep], rotated=True)]
        preds = {
            "boxes": boxes[keep].cpu(),
            "scores": scores[keep].cpu(),
            "labels": labels[keep].cpu(),
            "batch": index[keep].cpu(),
        }
        target = {
            "boxes": data["box"],
            "labels": data["label"],
            "batch": data["batch_box"],
        }
        matches.append(box_matches(preds, target))

iou_threshold = {0: 0.7, 1: 0.5, 2: 0.5}
per_class = average_precision3d(
    matches,
    iou_threshold=iou_threshold,
    average="none",
    class_names=classes,
    interpolation="r11",
)
mean_ap = average_precision3d(matches, iou_threshold=iou_threshold, interpolation="r11")
print({name: round(value * 100, 2) for name, value in per_class.items()}, round(mean_ap * 100, 2))

# {'Car': 66.82, 'Pedestrian': 46.7, 'Cyclist': 55.6} 56.37

The published number needs the difficulty rules too

KITTI scores its moderate split only: RelabelBoxes turns Van and Person_sitting into ignore regions and downgrades boxes past the occlusion, truncation and 2D-height limits, and predictions projecting to under 25 px are dropped. examples/pointpillars_benchmark_detection.py is this loop with those rules in place.

Train from scratch¶

While torch-pointcloud provides the models and the utilities around them, you still own the training loop. Detection targets come from transforms, and the loss rebuilds the anchor grid from the same geometry the head uses.

import copy

import torch
from tqdm.auto import tqdm

import torch_pointcloud as tp
import torch_pointcloud.transforms as T
from torch_pointcloud.datasets.kitti import KITTI_CLASSES
from torch_pointcloud.losses import AnchorLoss
from torch_pointcloud.utils.data import DataKeys, PointCloudDataLoader

device = "cuda"
voxel_size = (0.16, 0.16, 4.0)
point_cloud_range = (0.0, -39.68, -3.0, 69.12, 39.68, 1.0)

# Constructing a KITTI pays for validating the whole frame cache, so share the one built
# above and give the copy its own relabel. The rest of the pipeline is the checkpoint's.
train_dataset = copy.copy(dataset)
train_dataset.transform = T.Compose([
    T.RelabelBoxes(
        keys=["box", "label", "truncation", "occlusion", "bbox_height"],
        mapping={KITTI_CLASSES.index(name): i for i, name in enumerate(classes)},
        ignore_fields={"occlusion": (None, 1), "truncation": (None, 0.3), "bbox_height": (25, None)},
    ),
    info["transform"],
])
train_dataloader = PointCloudDataLoader(
    train_dataset,
    batch_size=4,
    shuffle=True,
    num_workers=8,
    cat_keys=[DataKeys.BOX, DataKeys.POS_VOXEL],
)

# Create the desired model, criterion and optimizer
model = tp.create_model("pointpillars.kitti.openpcdet", task="detection").to(device)
criterion = AnchorLoss(
    num_classes=3,
    voxel_size=voxel_size,
    point_cloud_range=point_cloud_range,
    anchor_sizes=[[3.9, 1.6, 1.56], [0.8, 0.6, 1.73], [1.76, 0.6, 1.73]],
    anchor_bottom_heights=[-1.78, -0.6, -0.6],
    feature_map_stride=2,
    matched_thresholds=[0.6, 0.5, 0.5],
    unmatched_thresholds=[0.45, 0.35, 0.35],
).to(device)
optimizer = torch.optim.AdamW(
    model.parameters(),
    lr=3e-3,
    weight_decay=0.01,
)

# Training loop
num_epochs = 1  # a demo pass, raise it to actually train

model.train()
for epoch in range(num_epochs):
    total_loss = 0.0
    pbar = tqdm(enumerate(train_dataloader), total=len(train_dataloader), desc=f"Epoch {epoch}")
    for i, data in pbar:
        data = {k: v.to(device) if torch.is_tensor(v) else v for k, v in data.items()}

        optimizer.zero_grad()
        out = model(data["voxel"], data["pos_voxel"], data["voxel_num_points"], data["batch_pos_voxel"])
        loss = criterion(out, data)["loss"]

        loss.backward()
        optimizer.step()
        total_loss += loss.item()
        if (i + 1) % 10 == 0:
            pbar.set_postfix({"train/loss_step": f"{loss.item():.3f}"})

    loss_epoch = total_loss / len(train_dataloader)
    print(f"Loss epoch {epoch}: {loss_epoch:.3f}")

Training and evaluation relabel differently

The training transform maps Car, Pedestrian and Cyclist to \(0, 1, 2\) and stops there. Evaluation adds ignore_mapping={1: 0, 4: 1} so Van and Person_sitting become ignore regions; at training those rows would enter the anchor targets as real Car and Pedestrian ground truth.
