Part Segmentation Datasets¶

Open in Colab · Download notebook

Part segmentation datasets label on the parts of an object: a chair's legs, back and seat. ShapeNetPart is the standard benchmark for this task, with 16 categories, 50 part ids and roughly 16 900 shapes.

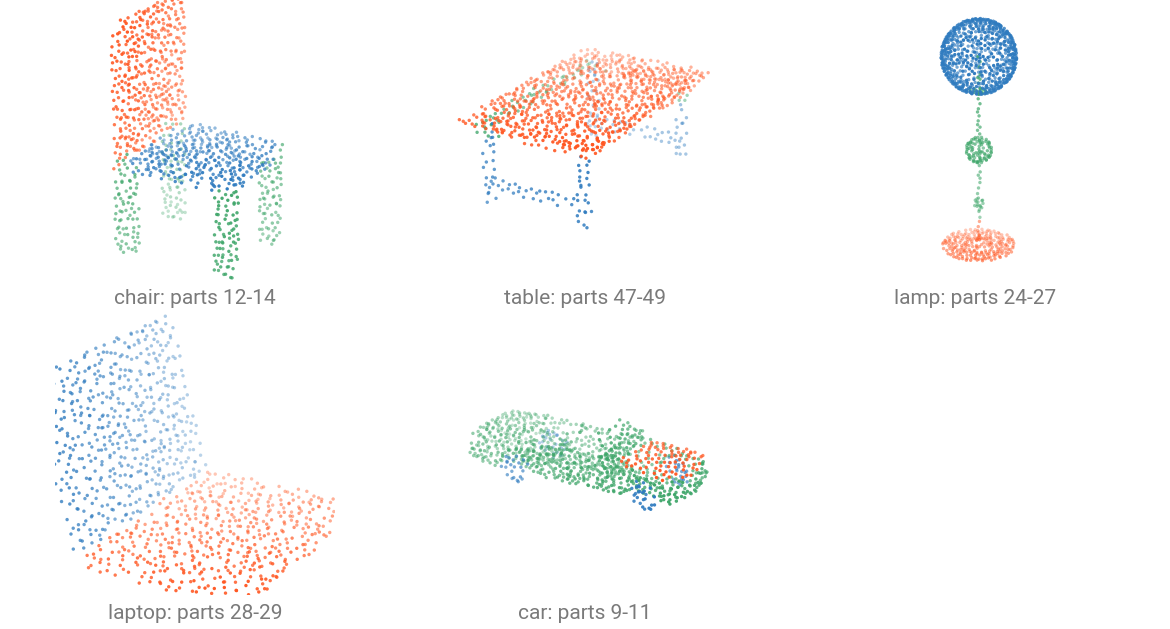

Part ids are global across the 16 categories: a chair owns 12-14 and a table 47-49, so one 50-way head covers every category. The colors above are each object's own segment field.

Load a dataset¶

Each dataset takes its data directory as root. Here that is DATA_DIR, which torch_pointcloud.config reads from the TORCH_POINTCLOUD_DATA_DIR environment variable. ShapeNetPart must be downloaded manually, as registration is required.

Once downloaded in the raw directory, the dataset is automatically preprocessed in the processed directory.

data/
├── ShapeNetPart/
│   ├── raw/
│   │   ├── 02691156/
│   │   ├── 02773838/
│   │   ├── ...
│   │   └── 04379243/
│   └── processed/
│       ├── train/
│       ├── test/
│       └── val/
└── ...

from torch_pointcloud.datasets import ShapeNetPart
from torch_pointcloud.config import DATA_DIR

dataset = ShapeNetPart(root=DATA_DIR, split="test")
print(f"Samples: {len(dataset)}")
print({k: tuple(v.shape) for k, v in dataset[0].items()})

You can use force_process=True to redo the preprocessing, and num_workers to parallelize it.

What a sample holds¶

category is a plain integer here. Part-segmentation checkpoints read it one-hot, which their registered transform handles.

Categories and their parts¶

from torch_pointcloud.datasets import ShapeNetPart

print(list(ShapeNetPart.category_ids)[:5])
print(ShapeNetPart.seg_ids["Airplane"], ShapeNetPart.seg_ids["Mug"])

Restrict the dataset to a subset of categories with categories=:

from torch_pointcloud.config import DATA_DIR

dataset = ShapeNetPart(root=DATA_DIR, split="train", categories=["Chair"])

Use it with a checkpoint¶

The registered transform carries the checkpoint's whole preprocessing: it samples the point budget the checkpoint expects, subsamples normal and segment with the same indices, and one-hots category.

import torch_pointcloud as tp
from torch_pointcloud.datasets import ShapeNetPart
from torch_pointcloud.utils.data import PointCloudDataLoader
from torch_pointcloud.config import DATA_DIR

# Load the pretrained model
model, info = tp.create_model(
    "pointnext-sm.shapenetpart.openpoints",
    task="part-segmentation",
    pretrained=True,
    return_info=True,
)

# Pass the associated transform to the dataset
dataset = ShapeNetPart(root=DATA_DIR, split="test", transform=info["transform"])
dataloader = PointCloudDataLoader(dataset, batch_size=16, num_workers=6)

data = next(iter(dataloader))
print(f"Pos shape: {tuple(data['pos'].shape)}")
print(f"X shape: {tuple(data['x'].shape)}")
print(f"Category shape: {tuple(data['category'].shape)}")

category is a \((1, 16)\) one-hot row per object, so it concatenates to \((B, 16)\) the same way the per-point keys concatenate. See Part segmentation for the loop that scores it.
