VoxelNeXt detection model.

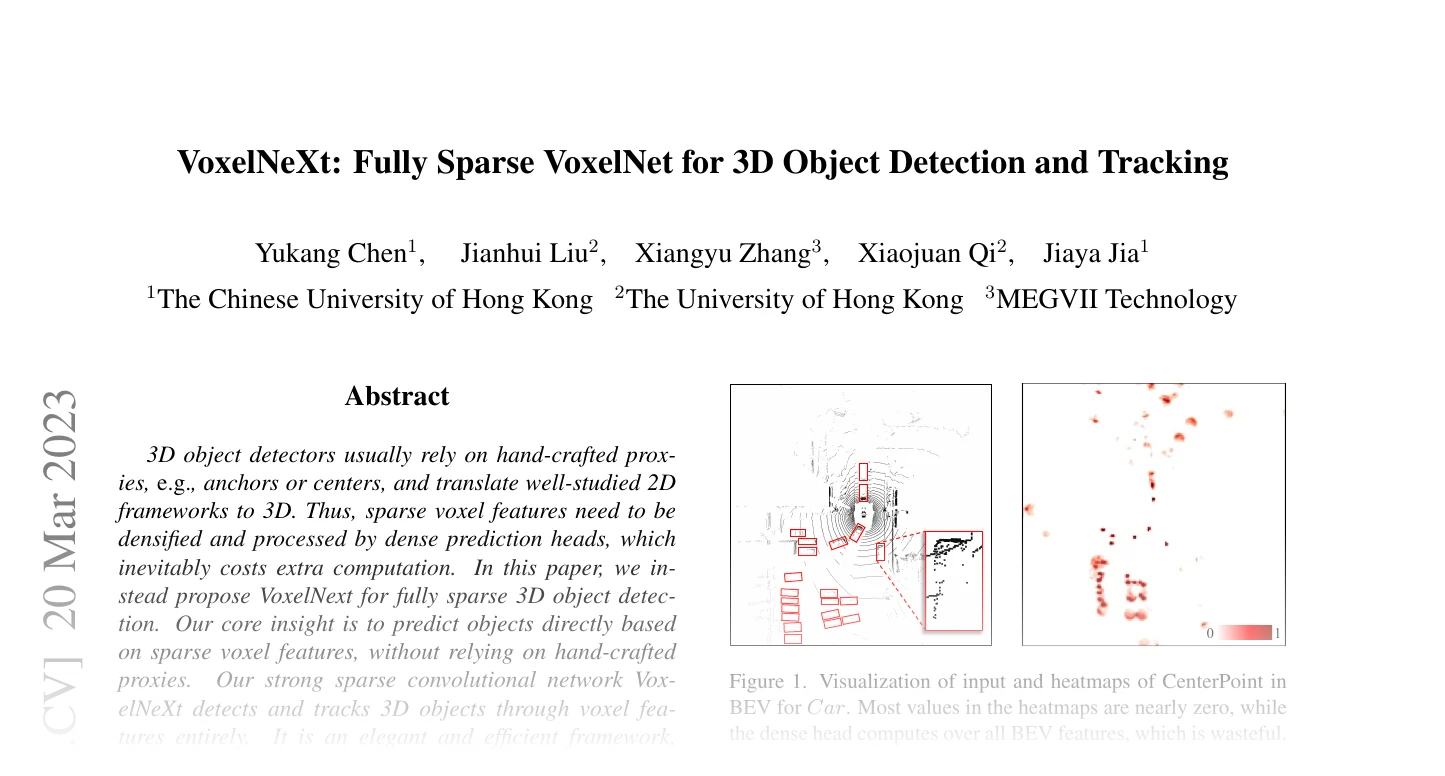

First page of VoxelNeXt: Fully Sparse VoxelNet for 3D Object Detection and Tracking

2303.11301 · March 2023

Classes:

VoxelNeXtHeadOutput –

Raw per-voxel predictions of the fully sparse VoxelNeXt head.
VoxelResBackbone8xVoxelNeXt –

Fully sparse residual voxel backbone (VoxelResBackBone8xVoxelNeXt), \(8\times\) BEV stride.
VoxelNeXtSeparateHead –

Per-group sparse regression head (SeparateHead).
VoxelNeXtHead –

Fully sparse multi-group detection head (VoxelNeXtHead).
VoxelNeXtDetection –

VoxelNeXt fully sparse 3D object detector (packed point format).

VoxelNeXtHeadOutput [source] ¶

Bases: TypedDict

Raw per-voxel predictions of the fully sparse VoxelNeXt head.

Each entry is a list with one tensor per class group. voxel_indices are the sparse positions \((\text{batch}, y, x)\) of the BEV feature map that every prediction row is anchored to.

Attributes:

hm (List[Tensor]) –

Per-group classification logits, each of shape \((V, n_g)\) for \(n_g\) classes in the group.
center (List[Tensor]) –

Per-group BEV center offset, each \((V, 2)\).
center_z (List[Tensor]) –

Per-group absolute box height, each \((V, 1)\).
dim (List[Tensor]) –

Per-group log box size, each \((V, 3)\).
rot (List[Tensor]) –

Per-group \((\cos\theta, \sin\theta)\), each \((V, 2)\).
vel (List[Tensor]) –

Per-group BEV velocity, each \((V, 2)\).
voxel_indices (Tensor) –

Sparse BEV indices \((V, 3)\) with columns \((\text{batch}, y, x)\).

VoxelResBackbone8xVoxelNeXt [source] ¶

VoxelResBackbone8xVoxelNeXt(
    in_channels: int,
    *,
    channels: Sequence[int] = (16, 32, 64, 128, 128),
    out_channels: int = 128,
    act: Union[str, Callable, None] = "relu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm: Union[str, Callable, None] = "batch_norm",
    norm_kwargs: Optional[Dict[str, Any]] = None,
)

Bases: Module

Fully sparse residual voxel backbone (VoxelResBackBone8xVoxelNeXt), \(8\times\) BEV stride.

Extends the SECOND residual backbone with two extra downsampling stages (conv5, conv6) whose outputs are folded back onto the stage-4 sparse tensor (their indices rescaled by \(2\) and \(4\)), so the receptive field grows without densifying. The merged 3D sparse tensor is then collapsed along height into a 2D BEV sparse tensor (bev_out), refined by a 2D conv_out + shared_conv, and returned as a 2D spconv.SparseConvTensor for the fully sparse head (no dense BEV map).

Parameters:

in_channels (int) –

Input voxel feature channels (\(5\) for nuScenes \(x, y, z, \text{intensity}, \Delta t\)).
channels (Sequence[int], default: (16, 32, 64, 128, 128) ) –

Per-stage channel widths \((c_1, \ldots, c_5)\) for conv1-conv6.
out_channels (int, default: 128 ) –

Output channels of the 2D conv_out / shared_conv.
act (Union[str, Callable, None], default: 'relu' ) –

Activation type or callable.
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra activation arguments.
norm (Union[str, Callable, None], default: 'batch_norm' ) –

Normalization type or callable.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra normalization arguments.

Methods:

bev_out –

Collapses the height axis by summing the features of every voxel sharing the same BEV cell.

bev_out [source] ¶

bev_out(x_conv: SparseConvTensor) -> SparseConvTensor

Collapses the height axis by summing the features of every voxel sharing the same BEV cell.

VoxelNeXtSeparateHead [source] ¶

VoxelNeXtSeparateHead(
    in_channels: int,
    head_dict: Dict[str, Dict[str, int]],
    *,
    head_kernel_size: int,
    use_bias: bool,
    init_bias: float = -2.19,
    act: Union[str, Callable, None] = "relu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm: Union[str, Callable, None] = "batch_norm",
    norm_kwargs: Optional[Dict[str, Any]] = None,
)

Bases: Module

Per-group sparse regression head (SeparateHead).

One small sparse 2D conv stack per box attribute (hm, center, ...). Every attribute has num_conv \(- 1\) hidden SubMConv2d blocks (kernel head_kernel_size) followed by a \(1\times1\) SubMConv2d projecting to the attribute's output channels. Runs directly on the BEV sparse tensor and returns per-voxel feature tensors (no dense map).

Parameters:

in_channels (int) –

Shared-conv feature channels feeding every attribute stack.
head_dict (Dict[str, Dict[str, int]]) –

Mapping attribute name -> {"out_channels": int, "num_conv": int}.
head_kernel_size (int) –

Kernel size of the hidden SubMConv2d blocks.
use_bias (bool) –

Whether the hidden conv carries a bias (USE_BIAS_BEFORE_NORM).
init_bias (float, default: -2.19 ) –

Bias initialization of the heatmap output conv.
act (Union[str, Callable, None], default: 'relu' ) –

Activation type or callable.
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra activation arguments.
norm (Union[str, Callable, None], default: 'batch_norm' ) –

Normalization type or callable.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra normalization arguments.

Methods:

reset_parameters –

Start the heatmap logits at init_bias, the regression convs at Kaiming-normal weights and zero biases.

reset_parameters [source] ¶

reset_parameters() -> None

Start the heatmap logits at init_bias, the regression convs at Kaiming-normal weights and zero biases.

VoxelNeXtHead [source] ¶

VoxelNeXtHead(
    in_channels: int,
    class_groups: Sequence[Sequence[int]],
    *,
    head_dict: Dict[str, Dict[str, int]],
    head_kernel_size: int,
    num_hm_conv: int,
    use_bias: bool,
    feature_map_stride: int,
    voxel_size: Sequence[float],
    point_cloud_range: Sequence[float],
    act: Union[str, Callable, None] = "relu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm: Union[str, Callable, None] = "batch_norm",
    norm_kwargs: Optional[Dict[str, Any]] = None,
)

Bases: Module

Fully sparse multi-group detection head (VoxelNeXtHead).

A stack of VoxelNeXtSeparateHeads, one per class group, predicting CenterPoint-style attributes directly on the BEV sparse voxels. decode performs per-group top-\(K\) voxel selection, recovers oriented boxes from the sparse indices, then per-group 3D NMS.

Parameters:

in_channels (int) –

Shared-conv feature channels feeding each separate head.
class_groups (Sequence[Sequence[int]]) –

Class-index groups (0-based), one per separate head.
head_dict (Dict[str, Dict[str, int]]) –

Per-attribute config shared by every group (hm is appended per group).
head_kernel_size (int) –

Kernel size of the hidden head convs.
num_hm_conv (int) –

Number of convs in the classification (hm) stack.
use_bias (bool) –

Whether hidden head convs carry a bias.
feature_map_stride (int) –

BEV stride relating sparse indices to metric coordinates.
voxel_size (Sequence[float]) –

Voxel size \((v_x, v_y, v_z)\).
point_cloud_range (Sequence[float]) –

Range \((x_\min, y_\min, z_\min, x_\max, y_\max, z_\max)\).
act (Union[str, Callable, None], default: 'relu' ) –

Activation type or callable.
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra activation arguments.
norm (Union[str, Callable, None], default: 'batch_norm' ) –

Normalization type or callable.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra normalization arguments.

Methods:

decode –

Decode raw sparse head outputs into raw candidate detections (no score threshold or NMS).

decode [source] ¶

decode(
    out: VoxelNeXtHeadOutput,
    *,
    batch_size: int,
    top_k: int = 500,
) -> Detection3D

Decode raw sparse head outputs into raw candidate detections (no score threshold or NMS).

Selects the top-\(K\) scoring voxels per group and scene and recovers an oriented box, score and label per candidate, along with the predicted BEV velocity \((v_x, v_y)\) under velocity. The full candidate set is returned; the evaluation pipeline applies score thresholding and per-class 3D NMS via the torch_pointcloud.ops.box3d utilities (see the benchmark example).

Parameters:

out (VoxelNeXtHeadOutput) –

A VoxelNeXtHeadOutput from forward.
batch_size (int) –

Number of scenes \(B\) in the batch.
top_k (int, default: 500 ) –

Per-group, per-scene voxel cap.

Returns:

Detection3D –

Packed candidate detections {"boxes": (K, 7), "scores": (K,), "labels": (K,), "batch": (K,)}
Detection3D –

(PyG layout), plus "velocity" \((K, 2)\).

VoxelNeXtDetection [source] ¶

VoxelNeXtDetection(
    in_channels: int = 5,
    num_classes: int = 10,
    *,
    voxel_size: Sequence[float] = (0.075, 0.075, 0.2),
    point_cloud_range: Sequence[float] = (
        -54.0,
        -54.0,
        -5.0,
        54.0,
        54.0,
        3.0,
    ),
    head_class_groups: Sequence[Sequence[int]],
    feature_map_stride: int,
    channels: Sequence[int] = (16, 32, 64, 128, 128),
    shared_conv_channels: int = 128,
    head_kernel_size: int = 1,
    num_hm_conv: int = 2,
    use_bias_before_norm: bool = True,
    act: Union[str, Callable, None] = "relu",
    act_kwargs: Optional[Dict[str, Any]] = None,
    norm: Union[str, Callable, None] = "batch_norm",
    norm_kwargs: Optional[Dict[str, Any]] = None,
)

Bases: DetectionModel

VoxelNeXt fully sparse 3D object detector (packed point format).

Reference: VoxelNeXt: Fully Sparse VoxelNet for 3D Object Detection and Tracking (Chen et al., 2023). Reference implementation: dvlab-research/VoxelNeXt (ported via open-mmlab/OpenPCDet, cbgs_voxel0075_voxelnext). A residual sparse 3D backbone (VoxelResBackbone8xVoxelNeXt) collapses to a 2D BEV sparse tensor that a fully sparse multi-group head (VoxelNeXtHead) predicts boxes on directly, with no dense bird's-eye-view map. Input points carry 5 features (\(x, y, z, \text{intensity}, \Delta t\)).

Parameters:

in_channels (int, default: 5 ) –

Raw point feature channels including xyz (5 for nuScenes).
num_classes (int, default: 10 ) –

Number of foreground classes (10 for nuScenes).
voxel_size (Sequence[float], default: (0.075, 0.075, 0.2) ) –

Voxel size \((v_x, v_y, v_z)\).
point_cloud_range (Sequence[float], default: (-54.0, -54.0, -5.0, 54.0, 54.0, 3.0) ) –

Range \((x_\min, y_\min, z_\min, x_\max, y_\max, z_\max)\).
head_class_groups (Sequence[Sequence[int]]) –

Class-index groups, one per separate head (e.g. [[0], [1, 2], ...]).
feature_map_stride (int) –

BEV feature-map stride of the head.
channels (Sequence[int], default: (16, 32, 64, 128, 128) ) –

Per-stage channel widths of the 3D backbone.
shared_conv_channels (int, default: 128 ) –

Output channels of the backbone's 2D shared conv (head input).
head_kernel_size (int, default: 1 ) –

Kernel size of the hidden head convs.
num_hm_conv (int, default: 2 ) –

Number of convs in the classification (hm) stack.
use_bias_before_norm (bool, default: True ) –

Whether hidden head convs carry a bias before their norm.
act (Union[str, Callable, None], default: 'relu' ) –

Activation type or callable for the backbone and head.
act_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra activation arguments.
norm (Union[str, Callable, None], default: 'batch_norm' ) –

Normalization type or callable for the backbone and head.
norm_kwargs (Optional[Dict[str, Any]], default: None ) –

Extra normalization arguments.

Methods:

configure_backbone_3d –

Build the fully sparse residual voxel backbone.
configure_head –

Build the fully sparse multi-group detection head.
decode –

Decode a forward output into raw candidate detections (see VoxelNeXtHead.decode).
reset_classifier –

Replace the classification branch of the detection head for num_classes outputs.

Attributes:

num_features (int) –

Channel count \(C\) of the sparse voxel features entering the head.

num_features `property` ¶

num_features: int

Channel count \(C\) of the sparse voxel features entering the head.

configure_backbone_3d [source] ¶

configure_backbone_3d() -> VoxelResBackbone8xVoxelNeXt

Build the fully sparse residual voxel backbone.

configure_head [source] ¶

configure_head() -> VoxelNeXtHead

Build the fully sparse multi-group detection head.

decode [source] ¶

decode(
    out: VoxelNeXtHeadOutput, *, top_k: int = 500
) -> Detection3D

Decode a forward output into raw candidate detections (see VoxelNeXtHead.decode).

reset_classifier [source] ¶

reset_classifier(num_classes: int) -> None

Replace the classification branch of the detection head for num_classes outputs.

Models whose head is not rebuildable in isolation raise NotImplementedError.
