point_bert

Bases: Module

Point-BERT transformer backbone.

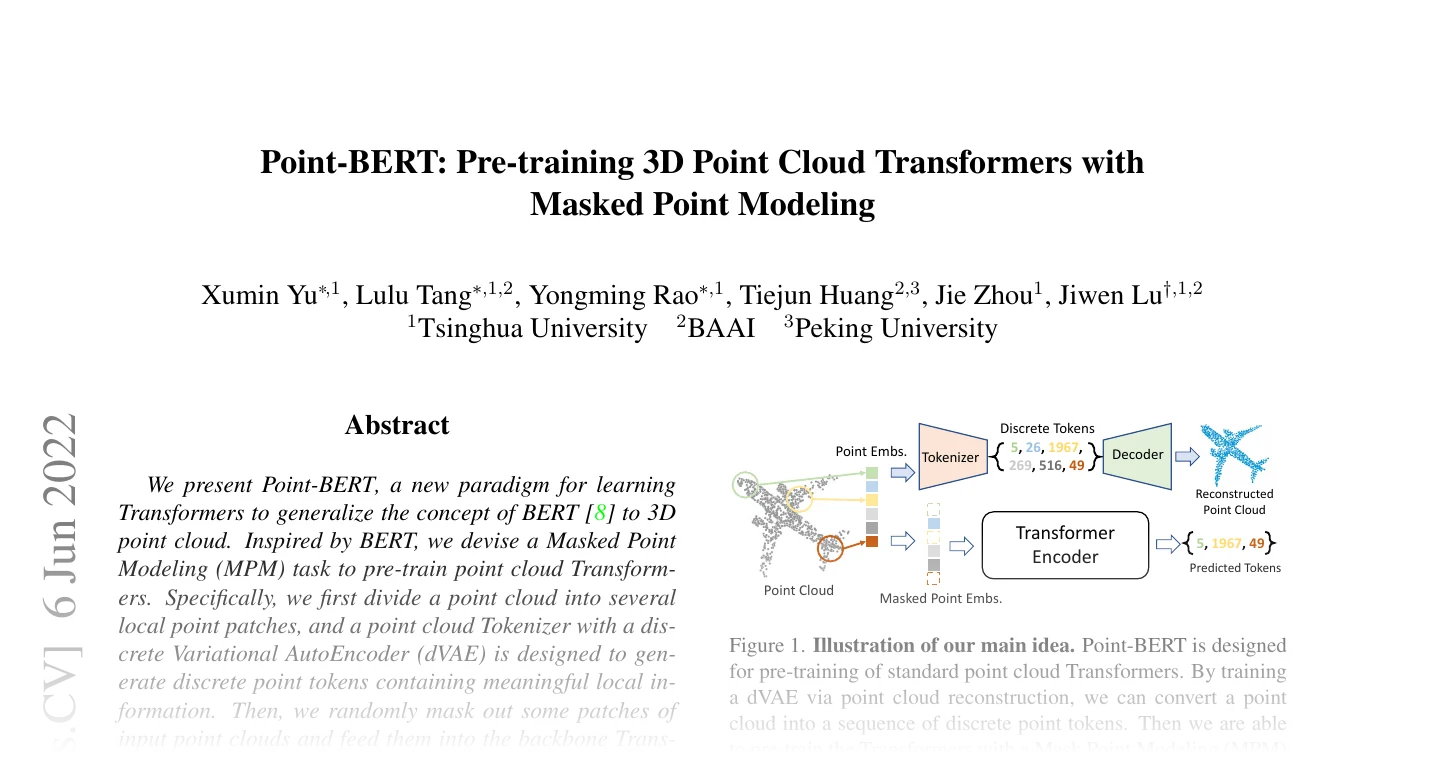

Implements the backbone of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

The backbone groups the cloud into patches (FPS + KNN), embeds each patch into a token with a mini-PointNet (PointTokenizer), bridges to the transformer dimension with a linear layer, prepends a class token, adds a learned positional embedding of the patch centers, and applies a standard pre-norm transformer encoder. Optional per-point features x are gathered per patch and concatenated to the centered coordinates before the tokenizer.

Parameters:

• embed_dim (int, default: 384 ) –

  The transformer dimension \(d\).

• depth (int, default: 12 ) –

  The number of transformer blocks.

• num_heads (int, default: 6 ) –

  The number of attention heads.

• num_groups (int, default: 64 ) –

  The number of patches \(G\).

• group_size (int, default: 32 ) –

  The number of points \(M\) per patch.

• encoder_dims (int, default: 256 ) –

  The token-embedding dimension before the linear bridge.

• in_channels (int, default: 0 ) –

  The number of per-point feature channels concatenated to the coordinates (\(0\) for coordinates only).

• token_local_channels (Sequence[int], default: (128, 256) ) –

  Hidden widths of the tokenizer's per-point MLP.

• token_global_channels (Sequence[int], default: (512,) ) –

  Hidden widths of the tokenizer's per-patch MLP.

• pos_embed_channels (Sequence[int], default: (128,) ) –

  Hidden widths of the positional-embedding MLP.

• drop_path (float, default: 0.1 ) –

  The stochastic depth rate (identity at eval).

• spatial_dim (int, default: 3 ) –

  The number of spatial dimensions of the coordinates.

• act (Union[str, Callable, None], default: 'gelu' ) –

  The activation used in the transformer MLPs.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the activation.

• norm (Union[str, Callable, None], default: LayerNorm ) –

  The normalization used in the transformer blocks.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the normalization.

• token_act (Union[str, Callable, None], default: 'relu' ) –

  The activation used in the token encoder.

• token_act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token-encoder activation.

• token_norm (Union[str, Callable, None], default: 'batch_norm' ) –

  The normalization used in the token encoder.

• token_norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token-encoder normalization.

import torch
from torch_pointcloud.models.point_bert import PointBERTEncoder

encoder = PointBERTEncoder(embed_dim=384, depth=12, num_heads=6)
pos = torch.randn(2048, 3)
batch = torch.cat([torch.zeros(1024), torch.ones(1024)]).long()
out = encoder(None, pos, batch)
print(out.shape)

Bases: ClassificationModel

Point-BERT classification model.

Implements the finetuning model of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

A PointBERTEncoder backbone followed by a 2-layer MLP head. The global feature concatenates the class token with the max-pooled patch tokens, so the head input dimension is \(2d\).

Parameters:

• in_channels (int) –

  The number of per-point feature channels concatenated to the coordinates (\(0\) for coordinates only).

• num_classes (int) –

  The number of output classes.

• embed_dim (int, default: 384 ) –

  The transformer dimension \(d\).

• depth (int, default: 12 ) –

  The number of transformer blocks.

• num_heads (int, default: 6 ) –

  The number of attention heads.

• num_groups (int, default: 64 ) –

  The number of patches \(G\).

• group_size (int, default: 32 ) –

  The number of points \(M\) per patch.

• encoder_dims (int, default: 256 ) –

  The token-embedding dimension before the linear bridge.

• token_local_channels (Sequence[int], default: (128, 256) ) –

  Hidden widths of the tokenizer's per-point MLP.

• token_global_channels (Sequence[int], default: (512,) ) –

  Hidden widths of the tokenizer's per-patch MLP.

• pos_embed_channels (Sequence[int], default: (128,) ) –

  Hidden widths of the positional-embedding MLP.

• drop_path (float, default: 0.1 ) –

  The stochastic depth rate (identity at eval).

• spatial_dim (int, default: 3 ) –

  The number of spatial dimensions of the coordinates.

• act (Union[str, Callable, None], default: 'gelu' ) –

  The activation used in the transformer MLPs.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the activation.

• norm (Union[str, Callable, None], default: LayerNorm ) –

  The normalization used in the transformer blocks.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the normalization.

• head_act (Union[str, Callable, None], default: 'relu' ) –

  The activation used in the classification head.

• dropout (float, default: 0.5 ) –

  The dropout rate of the classification head.

• head_channels (Optional[Union[int, Sequence[int]]], default: 256 ) –

  The hidden width(s) of the classification head.

import torch
from torch_pointcloud.models.point_bert import PointBERTClassification

model = PointBERTClassification(in_channels=0, num_classes=40)
pos = torch.randn(2048, 3)
batch = torch.cat([torch.zeros(1024), torch.ones(1024)]).long()
logits = model(None, pos, batch)
print(logits.shape)

Methods:

• configure_encoder –

  Build the PointBERTEncoder backbone.

Attributes:

• num_features (int) –

  Channel count \(C\) of the pooled features entering the head.

num_features: int

configure_encoder() -> PointBERTEncoder

Bases: PretrainingModel

Point-BERT masked point modeling backbone (pretrain).

Implements the masked transformer (transformer_q) of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

It embeds patches and, in training mode, replaces a contiguous block of patch tokens (a ratio drawn uniformly from mask_ratio, centered on a random patch) with a learned mask token while keeping their positional embeddings. It then runs the transformer and exposes a token-classification head (lm_head, predicting dVAE codebook ids) and a contrastive class head (cls_head). In eval mode no tokens are masked. The MoCo / cutmix machinery of the full pretraining objective is omitted; this module is the reusable encoder that downstream finetuning loads.

Parameters:

• in_channels (int) –

  The number of per-point feature channels concatenated to the coordinates (\(0\) for coordinates only).

• embed_dim (int, default: 384 ) –

  The transformer dimension \(d\).

• depth (int, default: 12 ) –

  The number of transformer blocks.

• num_heads (int, default: 6 ) –

  The number of attention heads.

• num_groups (int, default: 64 ) –

  The number of patches \(G\).

• group_size (int, default: 32 ) –

  The number of points \(M\) per patch.

• encoder_dims (int, default: 256 ) –

  The token-embedding dimension before the linear bridge.

• token_local_channels (Sequence[int], default: (128, 256) ) –

  Hidden widths of the tokenizer's per-point MLP.

• token_global_channels (Sequence[int], default: (512,) ) –

  Hidden widths of the tokenizer's per-patch MLP.

• pos_embed_channels (Sequence[int], default: (128,) ) –

  Hidden widths of the positional-embedding MLP.

• num_tokens (int, default: 8192 ) –

  The dVAE vocabulary size predicted by lm_head.

• cls_dim (int, default: 512 ) –

  The contrastive head output dimension.

• mask_ratio (Tuple[float, float], default: (0.25, 0.45) ) –

  Lower / upper bounds of the block-masking ratio.

• drop_path (float, default: 0.1 ) –

  The stochastic depth rate (identity at eval).

• spatial_dim (int, default: 3 ) –

  The number of spatial dimensions of the coordinates.

• act (Union[str, Callable, None], default: 'gelu' ) –

  The activation used in the transformer MLPs and the contrastive head.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the activation.

• norm (Union[str, Callable, None], default: LayerNorm ) –

  The normalization used in the transformer blocks.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the normalization.

• token_act (Union[str, Callable, None], default: 'relu' ) –

  The activation used in the token encoder.

• token_act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token-encoder activation.

• token_norm (Union[str, Callable, None], default: 'batch_norm' ) –

  The normalization used in the token encoder.

• token_norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token-encoder normalization.

import torch
from torch_pointcloud.models.point_bert import PointBERTPretraining

model = PointBERTPretraining(in_channels=0)
pos = torch.randn(2048, 3)
batch = torch.cat([torch.zeros(1024), torch.ones(1024)]).long()
out = model(None, pos, batch)
print(out["cls_feature"].shape, out["logits"].shape)

Methods:

• configure_encoder –

  Build the mini-PointNet token encoder embedding each patch.

• configure_reduce_dim –

  Build the linear bridge from the token-embedding dimension to the transformer dimension.

• configure_pos_embed –

  Build the positional-embedding MLP mapping patch centers to the transformer dimension.

• configure_blocks –

  Build the transformer blocks with a linearly scaled stochastic-depth schedule.

• configure_lm_head –

  Build the token-classification head predicting dVAE codebook ids.

• configure_cls_head –

  Build the contrastive class-token head.

configure_encoder() -> PointPatchEmbed

configure_reduce_dim() -> Linear

configure_pos_embed() -> MLP

configure_blocks() -> ModuleList

configure_lm_head() -> Linear

configure_cls_head() -> MLP

Bases: Module

DGCNN feature-propagation block of the Point-BERT dVAE tokenizer.

Implements the DGCNN of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

Operates on the \(G\) patch tokens treated as a point set in token-feature space: it stacks four EdgeConv layers (KNN with \(k = 4\) over the patch centers, edge features, group-norm, leaky-relu, max over neighbors), concatenates the four levels, and projects to the output channel. The edge layers are genuine 2D convolutions over \((B, C, k, N)\) and use Conv2dBlock; the input projection and the final fusion are per-point shared Linear maps (the group-norm of the final fusion still reduces over channels and points on the \((B, C_\text{out}, G)\) layout). Used twice in the dVAE: before the codebook (dgcnn_1) and after (dgcnn_2).

Parameters:

• in_channels (int) –

  The input token-feature dimension.

• out_channels (int) –

  The output token-feature dimension.

• act (Union[str, Callable, None], default: 'leaky_relu' ) –

  The activation used in the edge layers and the final fusion.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the activation.

• norm (Union[str, Callable, None], default: 'group_norm' ) –

  The normalization used in the edge layers and the final fusion.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the normalization.

import torch
from torch_pointcloud.models.point_bert import TokenDGCNN

dgcnn = TokenDGCNN(in_channels=256, out_channels=8192)
feat = torch.randn(2, 64, 256)
center = torch.randn(2, 64, 3)
out = dgcnn(feat, center)
print(out.shape)

Bases: Module

Folding reconstruction decoder of the Point-BERT dVAE.

Implements the folding decoder of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

A per-token global feature is decoded to a coarse point set with a fully-connected MLP, then folded to a fine point set with a \(1 \times 1\) convolution conditioned on a \(2 \times 2\) grid.

Parameters:

• in_channels (int) –

  The per-token feature dimension fed to the decoder.

• num_fine (int) –

  The number of fine points \(N\) reconstructed per patch.

• act (Union[str, Callable, None], default: 'relu' ) –

  The activation used in the coarse MLP and the folding convolution.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the activation.

• norm (Union[str, Callable, None], default: 'batch_norm' ) –

  The normalization used in the folding convolution.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the normalization.

import torch
from torch_pointcloud.models.point_bert import FoldingDecoder

decoder = FoldingDecoder(in_channels=256, num_fine=32)
feature = torch.randn(2, 64, 256)
coarse, fine = decoder(feature)
print(coarse.shape, fine.shape)

Bases: PretrainingModel

Point-BERT discrete VAE point tokenizer.

Implements the dVAE of Point-BERT: Pre-training 3D Point Cloud Transformers with Masked Point Modeling, adapted from lulutang0608/Point-BERT.

The dVAE produces the discrete point tokens used as the masked-modeling targets in Point-BERT pretraining: a mini-PointNet token encoder, a DGCNN that maps tokens to codebook logits, a learned codebook, a second DGCNN, and a folding decoder reconstructing the patches.

Parameters:

• in_channels (int) –

  The number of input channels (\(0\), coordinates only).

• num_groups (int, default: 64 ) –

  The number of patches \(G\).

• group_size (int, default: 32 ) –

  The number of points \(M\) per patch.

• encoder_dims (int, default: 256 ) –

  The mini-PointNet token-embedding dimension.

• token_local_channels (Sequence[int], default: (128, 256) ) –

  Hidden widths of the tokenizer's per-point MLP.

• token_global_channels (Sequence[int], default: (512,) ) –

  Hidden widths of the tokenizer's per-patch MLP.

• num_tokens (int, default: 8192 ) –

  The codebook vocabulary size.

• tokens_dims (int, default: 256 ) –

  The codebook embedding dimension.

• decoder_dims (int, default: 256 ) –

  The dimension fed to the folding decoder.

• act (Union[str, Callable, None], default: 'relu' ) –

  The activation used in the token encoder and the folding decoder.

• act_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token / decoder activation.

• norm (Union[str, Callable, None], default: 'batch_norm' ) –

  The normalization used in the token encoder and the folding decoder.

• norm_kwargs (Optional[Dict[str, Any]], default: None ) –

  Keyword arguments for the token / decoder normalization.

import torch
from torch_pointcloud.models.point_bert import PointBERTDiscreteVAE

model = PointBERTDiscreteVAE(in_channels=0)
pos = torch.randn(2048, 3)
batch = torch.cat([torch.zeros(1024), torch.ones(1024)]).long()
out = model(None, pos, batch)
print(out["logits"].shape, out["fine"].shape)

Methods:

• configure_encoder –

  Build the mini-PointNet token encoder embedding each patch.

• configure_dgcnn_1 –

  Build the DGCNN mapping patch tokens to codebook logits.

• configure_dgcnn_2 –

  Build the DGCNN mapping sampled codebook embeddings to decoder features.

• configure_decoder –

  Build the folding decoder reconstructing each patch.

• tokenize –

  Return the codebook logits of every group, without sampling or decoding them.

configure_encoder() -> PointPatchEmbed

configure_dgcnn_1() -> TokenDGCNN

configure_dgcnn_2() -> TokenDGCNN

configure_decoder() -> FoldingDecoder

tokenize(pos: Tensor, batch: Tensor) -> Tensor
