nuscenes

nuScenes 3D object detection datasets with sweep aggregation and annotation loading helpers.

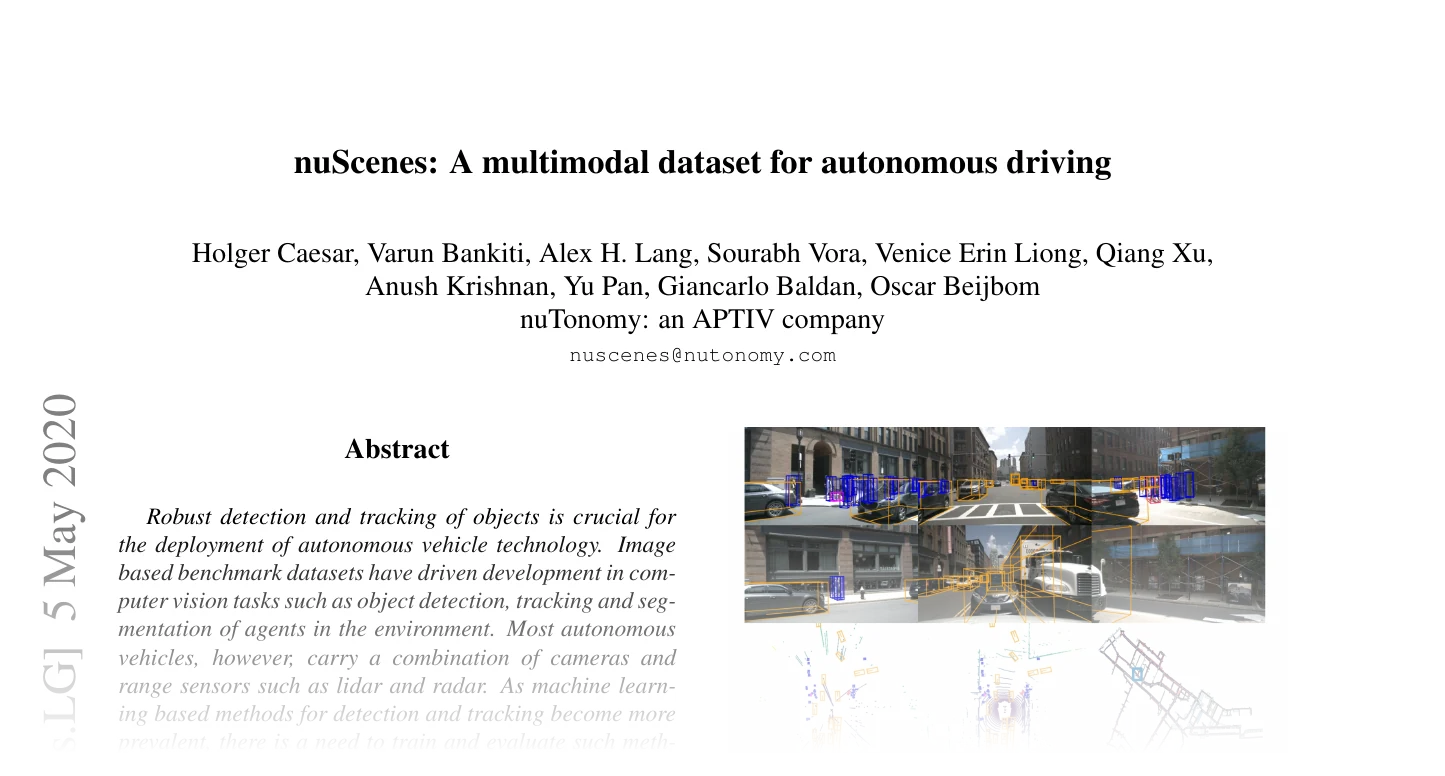

First page of nuScenes: A multimodal dataset for autonomous driving

1903.11027 · March 2019

Classes:

NuScenes –

nuScenes 3D object-detection dataset (LiDAR keyframes + LiDAR-frame ground-truth boxes).
NuScenesMini –

nuScenes mini 3D object-detection dataset: every keyframe of the v1.0-mini release.

Functions:

read_nuscenes_table –

Read one nuScenes metadata table from <version_dir>/<name>.json.
load_nuscenes_sweeps –

Aggregate up to max_sweeps LiDAR sweeps for a keyframe into its sensor frame.
load_nuscenes_boxes –

Convert a keyframe's global-frame annotations to LiDAR 7-DoF boxes with labels and box extras.
velocity_attributes –

Attribute id of each detected box from its class and BEV speed (the nuScenes submission convention).

NuScenes [source] ¶

NuScenes(
    root: PathLike,
    *,
    split: Optional[NuScenesSplit] = "train",
    version: Optional[str] = None,
    max_sweeps: int = 10,
    classes: Sequence[str] = NUSCENES_DETECTION_CLASSES,
    transform: Optional[
        Callable[[Dict[str, Any]], Dict[str, Any]]
    ] = None,
    download: bool = False,
    force_download: bool = False,
    force_process: bool = False,
    show_progress: bool = True,
    num_workers: Optional[int] = None,
)

Bases: PointCloudDataset

nuScenes 3D object-detection dataset (LiDAR keyframes + LiDAR-frame ground-truth boxes).

Reference: nuScenes: A multimodal dataset for autonomous driving.

Each LiDAR keyframe aggregates max_sweeps sweeps into the keyframe frame (ego-point removal + per-sweep ego/sensor transform, with a per-point time lag), and the global-frame annotations are converted to LiDAR 7-DoF boxes \((c_x, c_y, c_z, dx, dy, dz, \theta)\) mapped onto the official 10-class detection set (NUSCENES_DETECTION_CLASSES). split selects the keyframes through the official scene lists and resolves the metadata version it reads (train / val read v1.0-trainval, test reads v1.0-test, mini_train / mini_val read v1.0-mini); split=None takes every keyframe of an explicit version. The split is processed once into per-keyframe numpy files under <root>/NuScenes/processed/<version>_<split>_sweeps<max_sweeps>/, then loaded from there (the same raw -> processed -> load flow as S3DIS / ModelNet40).

Note

nuScenes cannot be downloaded automatically (it requires registration and accepting the dataset EULA). Download the metadata and every *_blobs.tgz archive of the version manually from https://www.nuscenes.org/nuscenes#download and extract them under <root>/NuScenes/raw/ so that raw/<version>/*.json, raw/samples/LIDAR_TOP/ and raw/sweeps/LIDAR_TOP/ exist; each blob archive holds a different set of scenes, so a split is complete only once all of them are extracted.

Tip

The processed cache is keyed by version, split and max_sweeps, so different sweep counts coexist. The cache also records the classes it was built with and refuses to load under a different class set; pass force_process=True to regenerate it.

Each sample is a dict:

Key	Shape	Dtype	Description
`pos`	\((N, 3)\)	float32	LiDAR XYZ (sweeps aggregated into keyframe frame)
`intensity`	\((N, 1)\)	float32	LiDAR reflectance
`timestamp`	\((N, 1)\)	float32	Per-point time lag to the keyframe (seconds)
`box`	\((K, 7)\)	float32	GT boxes \((c_x, c_y, c_z, dx, dy, dz, \theta)\)
`label`	\((K,)\)	int64	Detection class index into `classes`
`velocity`	\((K, 2)\)	float32	Per-box LiDAR-frame BEV velocity \((v_x, v_y)\)
`num_points`	\((K,)\)	int64	Per-box LiDAR point count (`num_lidar_pts`)
`attribute`	\((K,)\)	int64	Index into `NUSCENES_ATTRIBUTES` (\(-1\) when unset)
`token`	-	str	Source keyframe `sample_token`

Per-box velocities are the finite difference of the annotation translation across the prev / next annotations divided by their sample-timestamp delta, computed in the global frame, rotated into the keyframe LiDAR frame, and zero when neither neighbor exists. The test split ships no annotations, so its box tensors are empty.

Parameters:

root (PathLike) –

Dataset root; raw data is read from <root>/NuScenes/raw/.
split (Optional[NuScenesSplit], default: 'train' ) –

One of NUSCENES_SPLITS ("train", "val", "test", "mini_train", "mini_val"), or None for every keyframe of version.
version (Optional[str], default: None ) –

Metadata version directory; resolved from split when omitted, required when split is None.
max_sweeps (int, default: 10 ) –

Total LiDAR sweeps aggregated per keyframe (keyframe + prior sweeps).
classes (Sequence[str], default: NUSCENES_DETECTION_CLASSES ) –

Foreground class names kept (order defines the label index).
transform (Optional[Callable[[Dict[str, Any]], Dict[str, Any]]], default: None ) –

Callable applied to each sample dict (e.g. the model's registered transform).
download (bool, default: False ) –

If True, call download (which raises, since nuScenes needs a manual download).
force_download (bool, default: False ) –

Forwarded to download as force.
force_process (bool, default: False ) –

If True, reprocess the raw data even if a processed cache exists.
show_progress (bool, default: True ) –

If True, show a progress bar while processing.
num_workers (Optional[int], default: None ) –

Worker processes for processing, or None for sequential processing.

Example

Assuming the raw v1.0-trainval release is extracted under data/NuScenes/raw/:

from torch_pointcloud.datasets import NuScenes

dataset = NuScenes(root="data", split="val", num_workers=8)
len(dataset)          # 6019
sample = dataset[0]
sample["pos"].shape   # torch.Size([N, 3])
sample["box"].shape   # torch.Size([K, 7])

Methods:

split_scenes –

Scene names of split, or None when every scene of version belongs to it.

Attributes:

processed_dir (str) –

Path to the processed cache directory, one per version, split and sweep count.
name (str) –

Name of the dataset directory.
data_dir (str) –

Path to the dataset directory <root>/<name>.
raw_dir (str) –

Path to the raw download directory.

processed_dir `property` ¶

processed_dir: str

Path to the processed cache directory, one per version, split and sweep count.

name `property` ¶

name: str

Name of the dataset directory.

data_dir `property` ¶

data_dir: str

Path to the dataset directory <root>/<name>.

raw_dir `property` ¶

raw_dir: str

Path to the raw download directory.

split_scenes [source] ¶

split_scenes() -> Optional[FrozenSet[str]]

Scene names of split, or None when every scene of version belongs to it.

NuScenesMini [source] ¶

NuScenesMini(
    root: PathLike,
    *,
    version: str = "v1.0-mini",
    max_sweeps: int = 10,
    classes: Sequence[str] = NUSCENES_DETECTION_CLASSES,
    transform: Optional[
        Callable[[Dict[str, Any]], Dict[str, Any]]
    ] = None,
    download: bool = False,
    force_download: bool = False,
    force_process: bool = False,
    show_progress: bool = True,
    num_workers: Optional[int] = None,
)

Bases: NuScenes

nuScenes mini 3D object-detection dataset: every keyframe of the v1.0-mini release.

A NuScenes preset for the ten-scene mini release (404 keyframes, no train / val split) that reads its own <root>/NuScenesMini/raw/ directory, so the mini download can live next to the full dataset. Samples and the processed cache follow NuScenes; the cache lives under <root>/NuScenesMini/processed/<version>_sweeps<max_sweeps>/.

Parameters:

root (PathLike) –

Dataset root; raw data is read from <root>/NuScenesMini/raw/.
version (str, default: 'v1.0-mini' ) –

Metadata version directory (the mini split is "v1.0-mini").
max_sweeps (int, default: 10 ) –

Total LiDAR sweeps aggregated per keyframe (keyframe + prior sweeps).
classes (Sequence[str], default: NUSCENES_DETECTION_CLASSES ) –

Foreground class names kept (order defines the label index).
transform (Optional[Callable[[Dict[str, Any]], Dict[str, Any]]], default: None ) –

Callable applied to each sample dict (e.g. the model's registered transform).
download (bool, default: False ) –

If True, call download (which raises, since nuScenes needs a manual download).
force_download (bool, default: False ) –

Forwarded to download as force.
force_process (bool, default: False ) –

If True, reprocess the raw data even if a processed cache exists.
show_progress (bool, default: True ) –

If True, show a progress bar while processing.
num_workers (Optional[int], default: None ) –

Worker processes for processing, or None for sequential processing.

Example

Assuming the raw mini split is extracted under data/NuScenesMini/raw/:

from torch_pointcloud.datasets import NuScenesMini

dataset = NuScenesMini(root="data")
sample = dataset[0]
sample["pos"].shape   # torch.Size([N, 3])
sample["box"].shape   # torch.Size([K, 7])

Methods:

split_scenes –

Scene names of split, or None when every scene of version belongs to it.

Attributes:

name (str) –

Name of the dataset directory.
data_dir (str) –

Path to the dataset directory <root>/<name>.
raw_dir (str) –

Path to the raw download directory.
processed_dir (str) –

Path to the processed cache directory, one per version, split and sweep count.

name `property` ¶

name: str

Name of the dataset directory.

data_dir `property` ¶

data_dir: str

Path to the dataset directory <root>/<name>.

raw_dir `property` ¶

raw_dir: str

Path to the raw download directory.

processed_dir `property` ¶

processed_dir: str

Path to the processed cache directory, one per version, split and sweep count.

split_scenes [source] ¶

split_scenes() -> Optional[FrozenSet[str]]

Scene names of split, or None when every scene of version belongs to it.

read_nuscenes_table [source] ¶

read_nuscenes_table(
    version_dir: PathLike, name: str
) -> List[Dict[str, Any]]

Read one nuScenes metadata table from <version_dir>/<name>.json.

load_nuscenes_sweeps [source] ¶

load_nuscenes_sweeps(
    raw_dir: PathLike,
    record: Dict[str, Any],
    ego_pose: Dict[str, Any],
    calib: Dict[str, Any],
    sample_data: Dict[str, Any],
    max_sweeps: int,
) -> ndarray

Aggregate up to max_sweeps LiDAR sweeps for a keyframe into its sensor frame.

Each prior sweep is transformed into the keyframe frame and tagged with its time lag to the keyframe.

Parameters:

raw_dir (PathLike) –

Dataset raw directory (sweep filenames are resolved against it).
record (Dict[str, Any]) –

The keyframe sample_data record (a LIDAR_TOP key frame).
ego_pose (Dict[str, Any]) –

ego_pose table indexed by token.
calib (Dict[str, Any]) –

calibrated_sensor table indexed by token.
sample_data (Dict[str, Any]) –

sample_data table indexed by token (used to walk the prev chain).
max_sweeps (int) –

Total sweeps to aggregate (keyframe + prior sweeps).

Returns:

ndarray –

Packed points \((N, 5)\) of \((x, y, z, \text{intensity}, \Delta t)\).

load_nuscenes_boxes [source] ¶

load_nuscenes_boxes(
    record: Dict[str, Any],
    ego_pose: Dict[str, Any],
    calib: Dict[str, Any],
    annotations: Dict[str, List[Dict[str, Any]]],
    class_to_idx: Dict[str, int],
) -> Tuple[ndarray, ndarray, ndarray, ndarray, ndarray]

Convert a keyframe's global-frame annotations to LiDAR 7-DoF boxes with labels and box extras.

Parameters:

record (Dict[str, Any]) –

The keyframe sample_data record.
ego_pose (Dict[str, Any]) –

ego_pose table indexed by token.
calib (Dict[str, Any]) –

calibrated_sensor table indexed by token.
annotations (Dict[str, List[Dict[str, Any]]]) –

sample_annotation records grouped by sample_token, each carrying a detection_name (resolved detection class, or None), a global-frame velocity \((3,)\) and an attribute_id (index into NUSCENES_ATTRIBUTES, \(-1\) when unset).
class_to_idx (Dict[str, int]) –

Detection-class-name to label-index map; annotations whose class is absent are dropped.

Returns:

ndarray –

Boxes \((K, 7)\) of \((c_x, c_y, c_z, dx, dy, dz, \theta)\), integer labels \((K,)\), LiDAR-frame BEV
ndarray –

velocities \((K, 2)\), LiDAR point counts \((K,)\) and attribute ids \((K,)\).

velocity_attributes [source] ¶

velocity_attributes(
    labels: Tensor,
    velocity: Tensor,
    speed_threshold: float = 1.0,
) -> Tensor

Attribute id of each detected box from its class and BEV speed (the nuScenes submission convention).

A box faster than speed_threshold gets its class's moving attribute (vehicle.moving, cycle.with_rider, pedestrian.moving), a slower one its stationary attribute (vehicle.parked / vehicle.stopped, cycle.without_rider, pedestrian.standing); barrier and traffic_cone carry no attribute (\(-1\)).

Parameters:

labels (Tensor) –

Detection class indices into NUSCENES_DETECTION_CLASSES, shape \((N,)\).
velocity (Tensor) –

BEV velocities in m/s, shape \((N, 2)\).
speed_threshold (float, default: 1.0 ) –

Speed above which a box counts as moving.

Returns:

Tensor –

Attribute ids into NUSCENES_ATTRIBUTES, shape \((N,)\), \(-1\) where the class has none.

Example

import torch
from torch_pointcloud.datasets.nuscenes import velocity_attributes

labels = torch.tensor([0, 0, 5])  # car, car, barrier
velocity = torch.tensor([[3.0, 0.0], [0.2, 0.0], [3.0, 0.0]])
velocity_attributes(labels, velocity)  # tensor([ 0,  2, -1]): vehicle.moving, vehicle.parked, none
